Single Point Straight Side Press, TX1 Series

Single Point Straight Side Press, TX1 Series

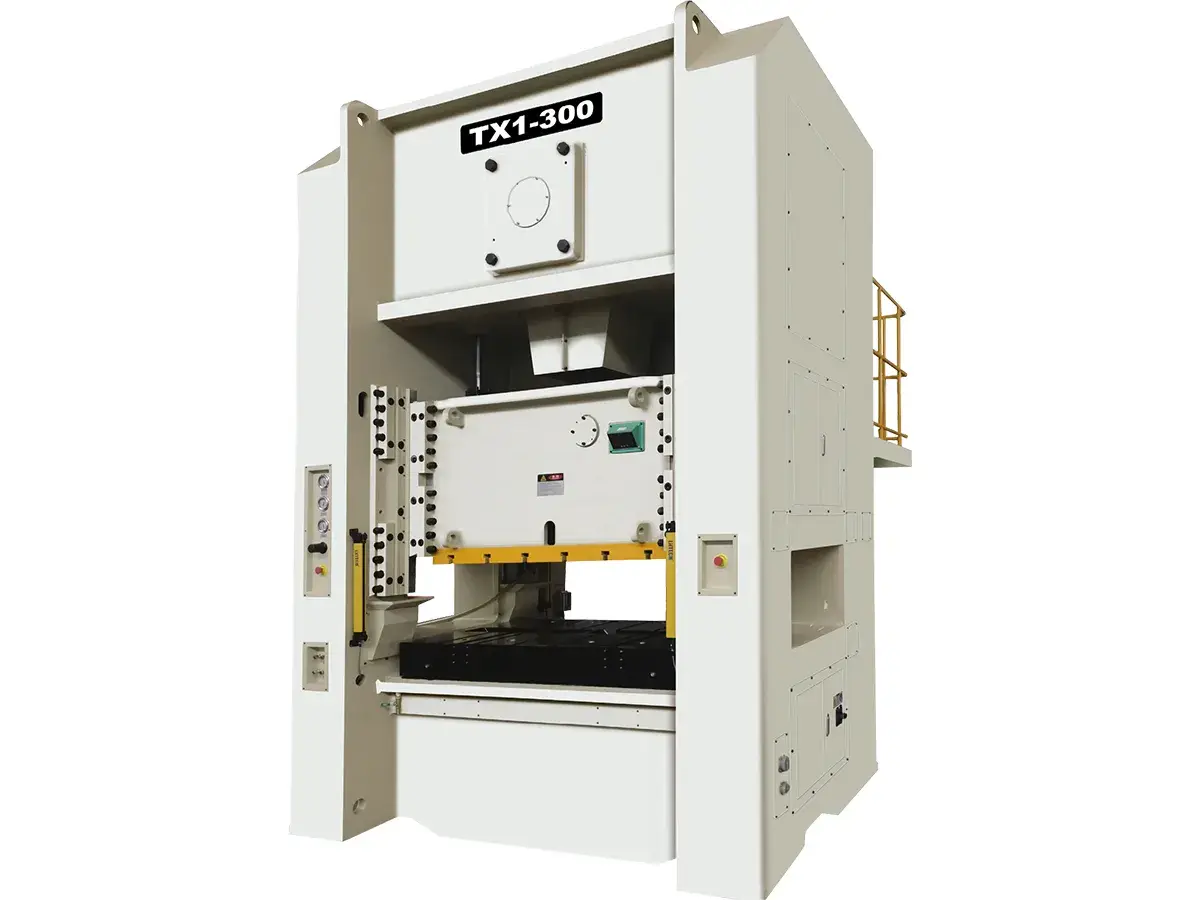

A single point straight side press is designed for stamping applications where stability and consistency are essential throughout the process. The TX1 series side press features a closed-frame structure that helps maintain alignment during operation, making it suitable for continuous production with reliable results. It offers a more stable working condition compared to open-frame presses.

Request a Quote
Technical Specifications
Model Unit TX1-150 TX1-200 TX1-250 TX1-315 TX1-400 TX1-500
Capacity Ton 150 200 250 315 400 500
Rated Tonnage Point mm 6.5 7 7 9 9 9
Strokes Per Minute spm 200 250 250 300 300 350
Stroke Length mm 20-40 20-40 20-40 20-35 15-30 15-25
Die Height (S.D.A.U) mm 500 550 550 600 600 650
Slide Adjustment mm 120 150 150 200 200 200
Slide Area (L.R×F.B) mm 700×700 900×800 1100×000 1200×1000 1400×1200 1500×1200
Bolster Area (L.R×F.B) mm 800×700 1000×900 1200×1100 1300×1100 1500×1200 1500×1300
Bolster Thickness mm 150 170 180 200 200 220
Slide Opening (F.B×H) mm 400×400 400×400 400×500 400×500 400×500 800×650
Worktable Height mm 840 850 850 850 850 900
Working Energy kg-m 1000 1500 2000 3000 4300 7000
Main Motor kW 15×4 18.5×4 22×4 30×4 37×4 55×4
Slide Adjustment Motor kW 1.5×4 1.5×4 1.5×4 1.5×4 1.5×4 2.2×4
Frame Type - One-Piece Frame One-Piece Frame One-Piece Frame One-Piece Frame One-Piece Frame One-Piece Frame
Features
  • One-Piece Straight Side Frame
    The column-type integrated frame eliminates the open throat limitation found in C-frame presses, improving overall rigidity during operation.
  • Four-Corner, Eight-Face Guiding System
    The extended guiding structure, combined with a well-designed transmission system, supports stable and precise stamping performance.
  • Circulating Oil Lubrication System
    Oil circulation lubrication helps maintain smooth machine operation while improving the overall working environment.
  • Operator Safety Protection System
    Designed with safety measures that meet standard press safety requirements, supporting safer operation.
  • Automation-Ready Configuration
    Can be integrated with various peripheral equipment to improve production efficiency.
