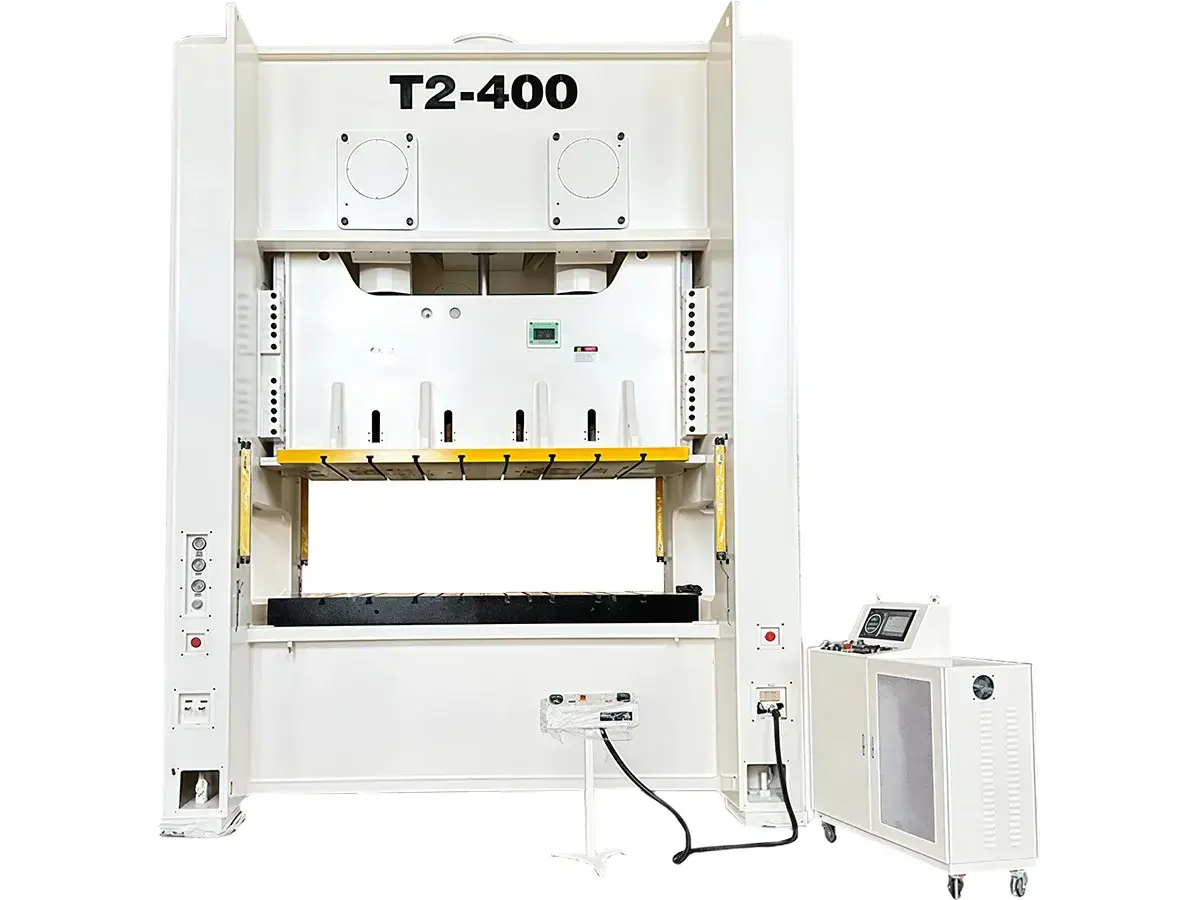

Double Point Straight Side Press, T2 Series

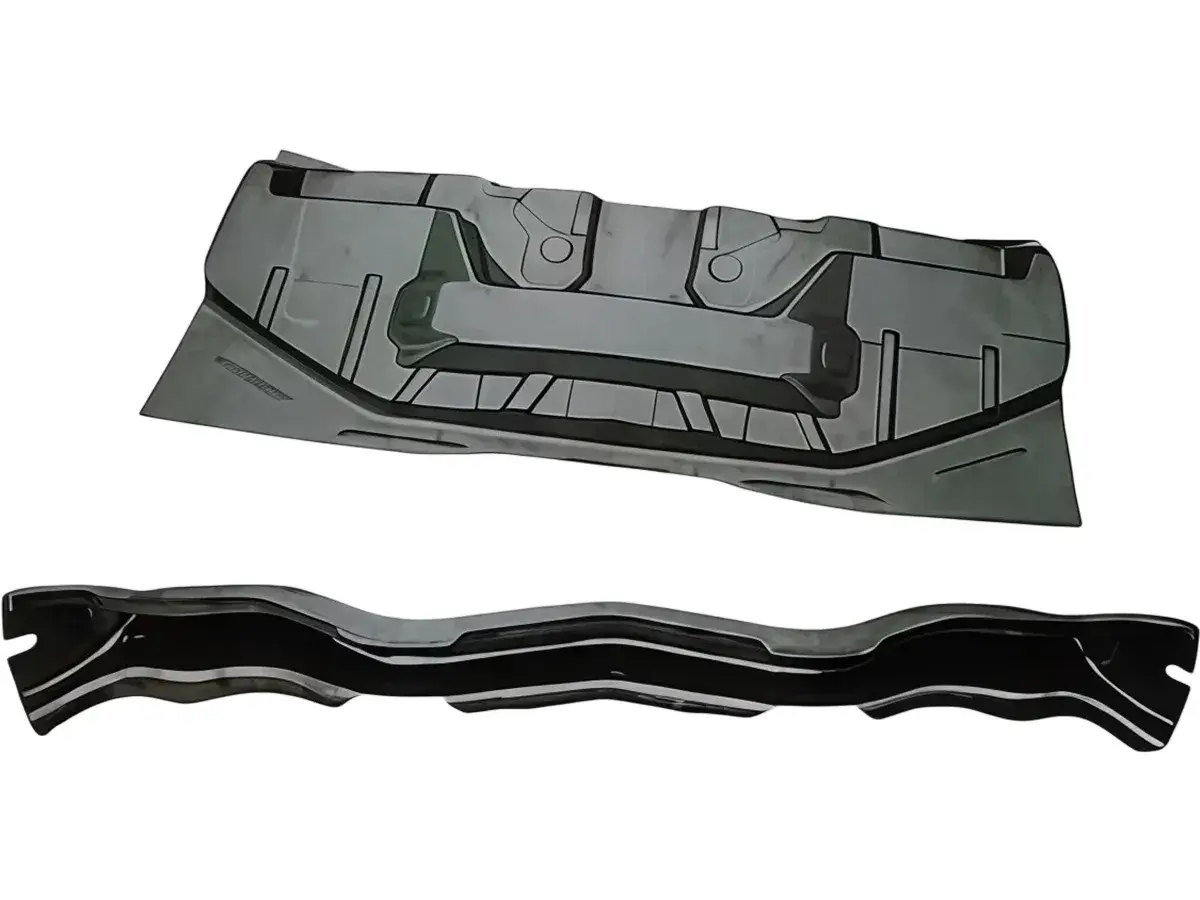

A double point straight side press is designed for stamping larger parts where balanced force and stability are important. The T2 series straight side press uses a dual-point drive within a closed-frame structure, helping distribute load evenly across the ram during operation. It is well suited for applications that require consistent accuracy when working with wider dies or larger components.

Request a Quote
Technical Specifications
Model Unit T2-400 T2-500
Type - Small Worktable Medium Worktable Large Worktable Small Worktable Medium Worktable Large Worktable
Capacity Ton 400 400 400 500 500 500
Rated Tonnage Point mm 7 7 7 7 7 7
Stroke length mm 300 350 400 300 350 400
Strokes Per Minute spm 20-40 20-30 15-30 20-40 20-30 20-30
Die Height (S.D.A.U) mm 550 650 700 600 650 700
Slide Adjustment mm 120 120 120 120 120 120
Slide Area (L.R×F.B) mm 2700×1000 3100×1100 3400×1200 2700×1300 3200×1300 3400×1400
Bolster Area (L.R×F.B) mm 2700×1000 3100×1200 3400×1300 2700×1300 3200×1400 3500×1500
Slide Opening (F.B×H) mm 900×550 1000×600 1100×650 1100×650 1200×600 1300×600
Main Motor kW 37×4 45×4 45×4 45×4 55×4 55×4
Features
  • Four-Corner, Eight-Face Guiding System
    The extended guiding structure, combined with a well-designed transmission system, supports stable and precise stamping performance.
  • Closed-Frame Design for Higher Rigidity
    Compared with C-frame presses, the closed structure provides greater strength, rigidity, and overall accuracy during operation.
  • Automatic Grease Lubrication System
    Ensures proper lubrication of key components, supporting stable machine operation over time.
  • Automation-Ready Configuration
    Can be integrated with various peripheral automation equipment to improve overall production efficiency.
