Single Point Straight Side Press, T1 Series

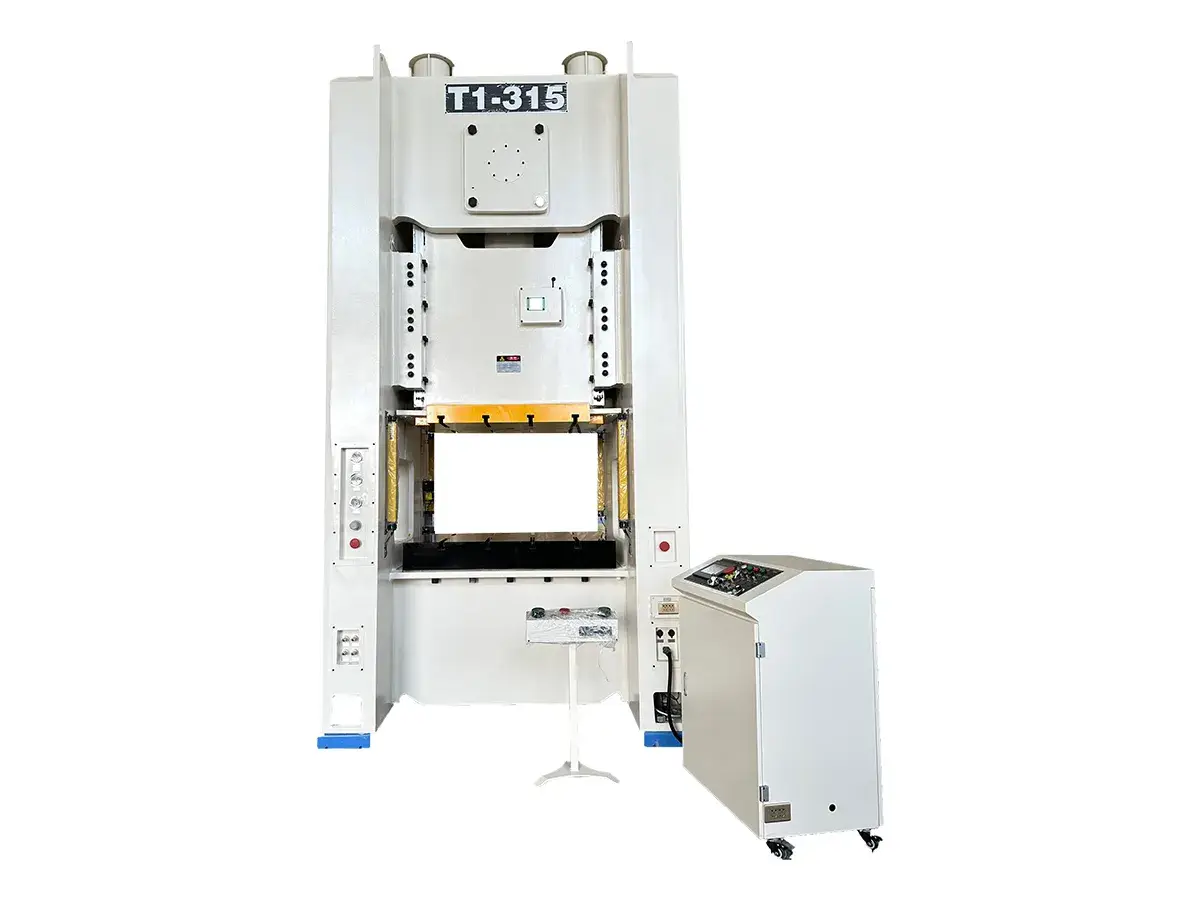

A single point straight side press is used for high-speed stamping where stable and consistent performance is required. It features a closed-frame structure with a centrally driven ram, helping maintain accuracy during continuous production. It suits operations where both speed and precision need to stay under control over long runs.

Request a Quote
Technical Specifications
Model Type Capacity Rated Tonnage Point Stroke Length Strokes Per Minute Die Height (S.D.A.U) Slide Adjustment Slide Area (L.R×F.B) Bolster Area (L.R×F.B) Slide Opening (F.B×H) Main Motor Work Height (Excluding Anti-Vibration Pads) Max. Upper Die Weight
Unit - Ton mm mm spm mm mm mm mm mm kW mm kg
T1-160 V 160 6 200 20-50 500 100 700×650 900×800 700×500 15×4 900 800
L 160 6 250 20-40 600 100 900×800 1000×900 700×500 15×4 900 800
T1-200 V 200 6 200 20-50 550 120 900×800 1000×900 700×500 18.5×4 950 1000
L 200 6 250 20-40 600 120 1100×900 200×1000 700×500 18.5×4 950 1000
T1-250 V 250 7 250 20-40 550 120 1000×900 100×1000 900×600 22×4 1000 1500
L 250 7 300 20-35 600 120 1200×1100 1300×1200 900×600 22×4 1000 1500
T1-315 V 315 7 250 20-40 550 120 1100×900 1200×100 900×600 30×4 1000 1500
L 315 7 300 20-35 600 120 300×1100 1400×1200 900×600 30×4 1000 1500
T1-400 V 400 8 300 20-30 600 150 1100×100 1200×1100h 900×600 37×4 1100 2000
L 400 8 350 15-25 650 150 400×1200 500×1300 1000×600 37×4 1100 2000
T1-500 V 500 8 300 20-30 650 150 1200×1100 300×1200 1000×700 45×4 1200 2500
L 500 8 350 15-25 700 150 400×12001 1500×1300t 000×700 45×4 1200 2500
T1-630 V 630 8 300 20-30 650 150 400×1200 500×1300 1100×700 55×4 900
(pit foundation required)		 2500
L 630 8 350 15-25 700 150 1500×1300 1700×1500 1100×700 55×4 900
(pit foundation required)		 2500
Features
  • Four-Corner, Eight-Face Guiding System
    The extended guiding structure supports stable ram movement, helping maintain consistent accuracy during stamping.
  • Closed-Frame Design for Higher Rigidity
    Designed for continuous die processing, helping maintain consistent part quality across high-volume production.

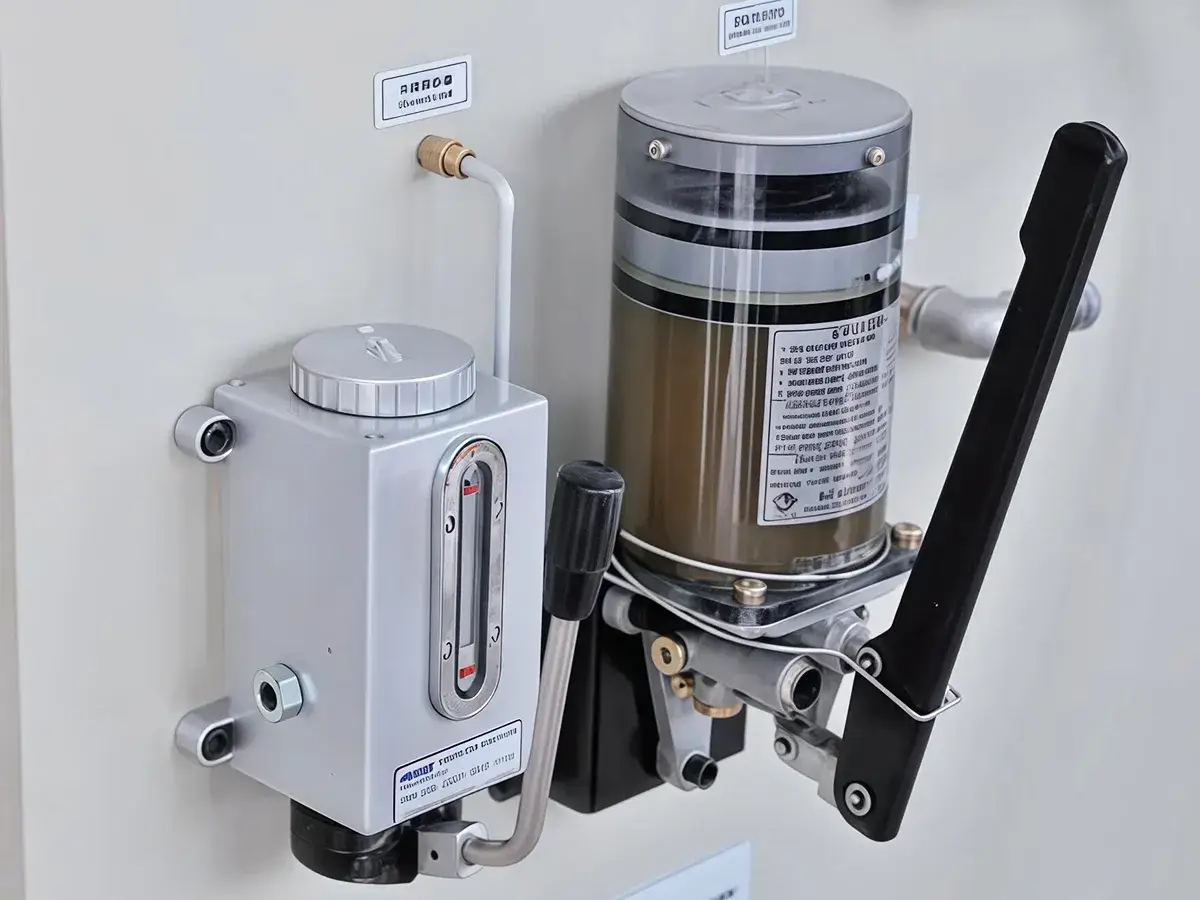

  • Automatic Lubrication System
    Ensures smooth operation of key components and supports stable machine performance over time.
  • Compatible with Automation Systems
    Can be integrated with various peripheral automation equipment to improve overall production efficiency.
