Laser Welding Machine

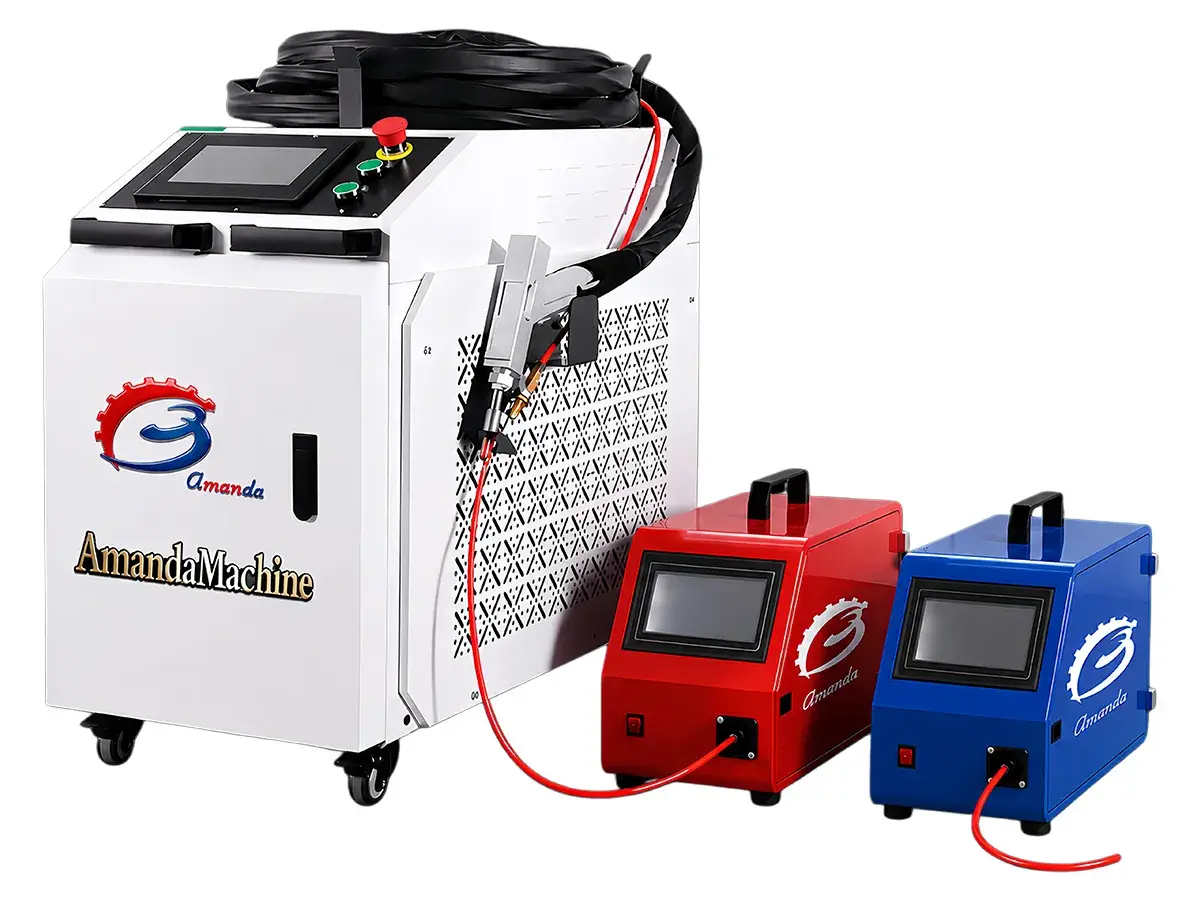

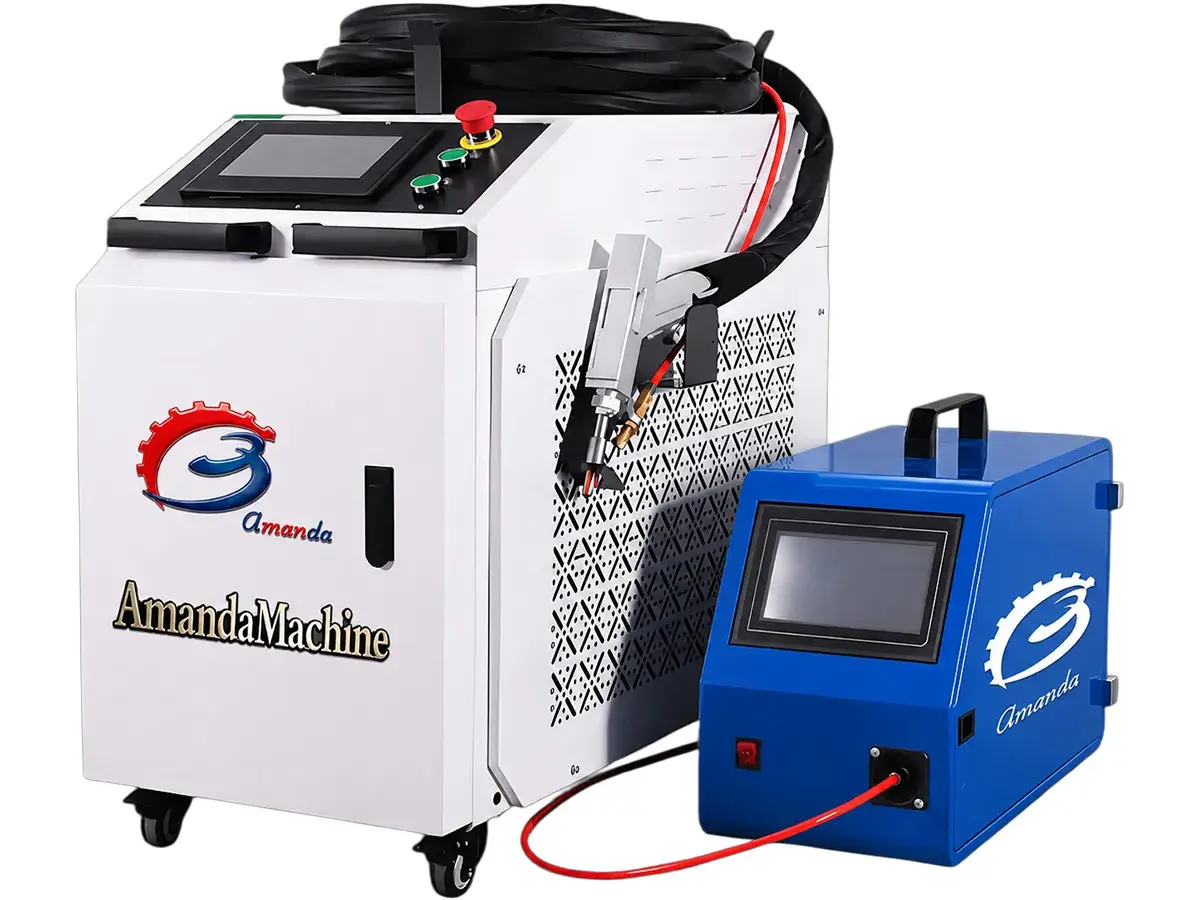

A handheld laser welding machine is designed for flexible and efficient metal joining, allowing operators to weld with greater freedom compared to traditional fixed optical systems. By using a handheld welding gun, it enables easy operation over long distances and on large workpieces without being limited by machine structure. With a focused laser beam, it delivers deep, strong welds with minimal heat impact helping parts retain their shape while keeping the weld area clean and free from discoloration. Suitable for a wide range of metal sheets, it supports stable and precise welding across different materials and thicknesses.
Technical Specifications
| Laser Power | 1000W/1500W/2000W |
| Laser Wavelength | 1070NM |
| Fiber Cable Length | Standard: 10m Max.: 15m |
| Welding Speed | 0-120mm/s |
| Cooling System | Industrial water chiller |
| Operating Temperature | 15~35℃ |
| Recommended Welding Thickness | 0.5-3mm |
| Power Supply | 220V |
Features
- No external chiller required, resulting in a compact machine footprint and easier installation.
- The handheld design allows flexible operation and supports outdoor welding applications.
- Delivers high beam quality and fast welding speed with a minimal heat impact, helping reduce deformation while maintaining precision.
- The handheld welding gun enables welding at multiple angles, making it suitable for complex weld seams and spot welding of different components.
- Produces smooth, uniform weld seams with minimal porosity, often requiring little to no post-processing.
