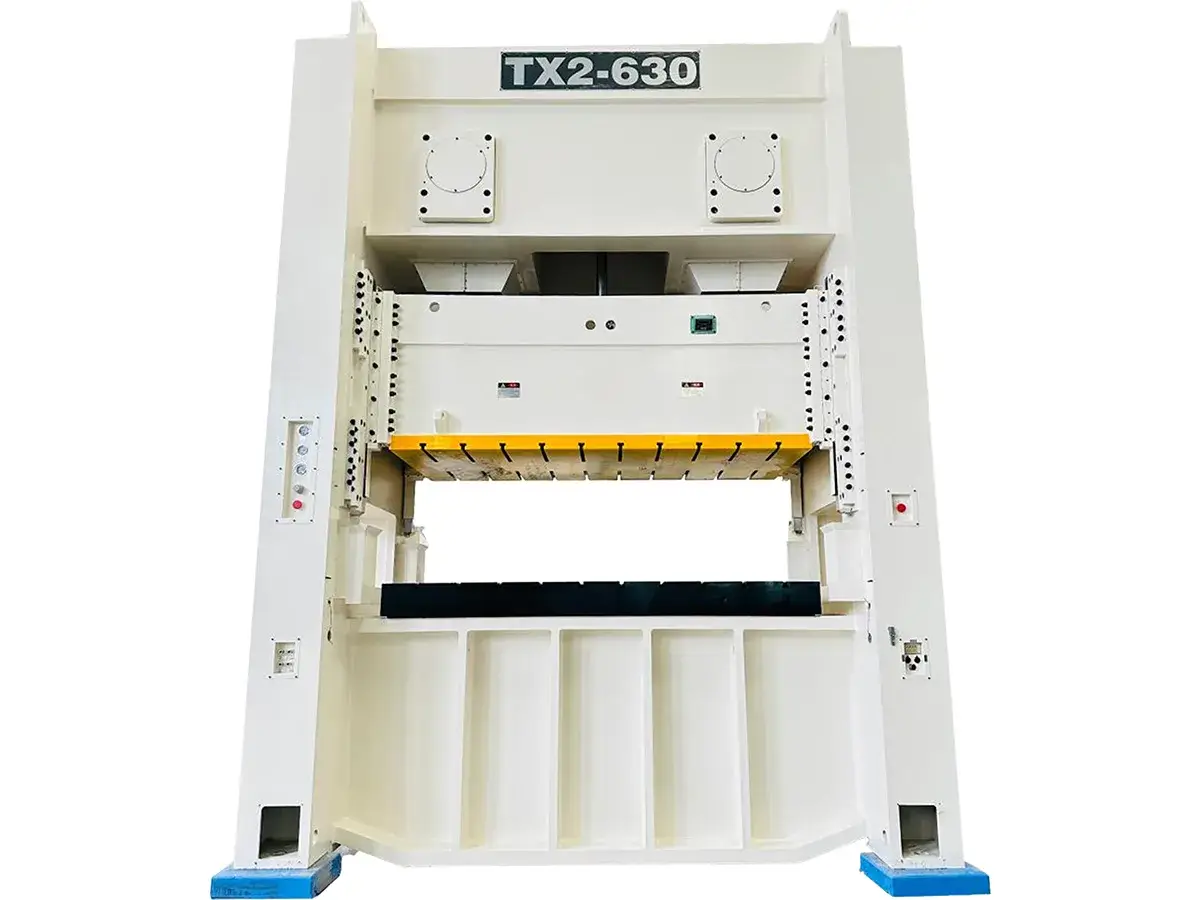

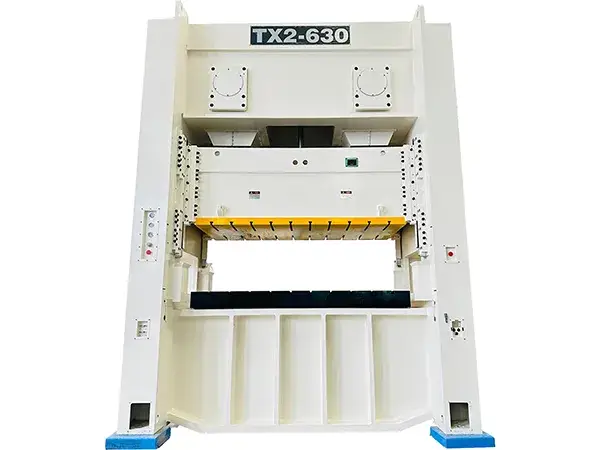

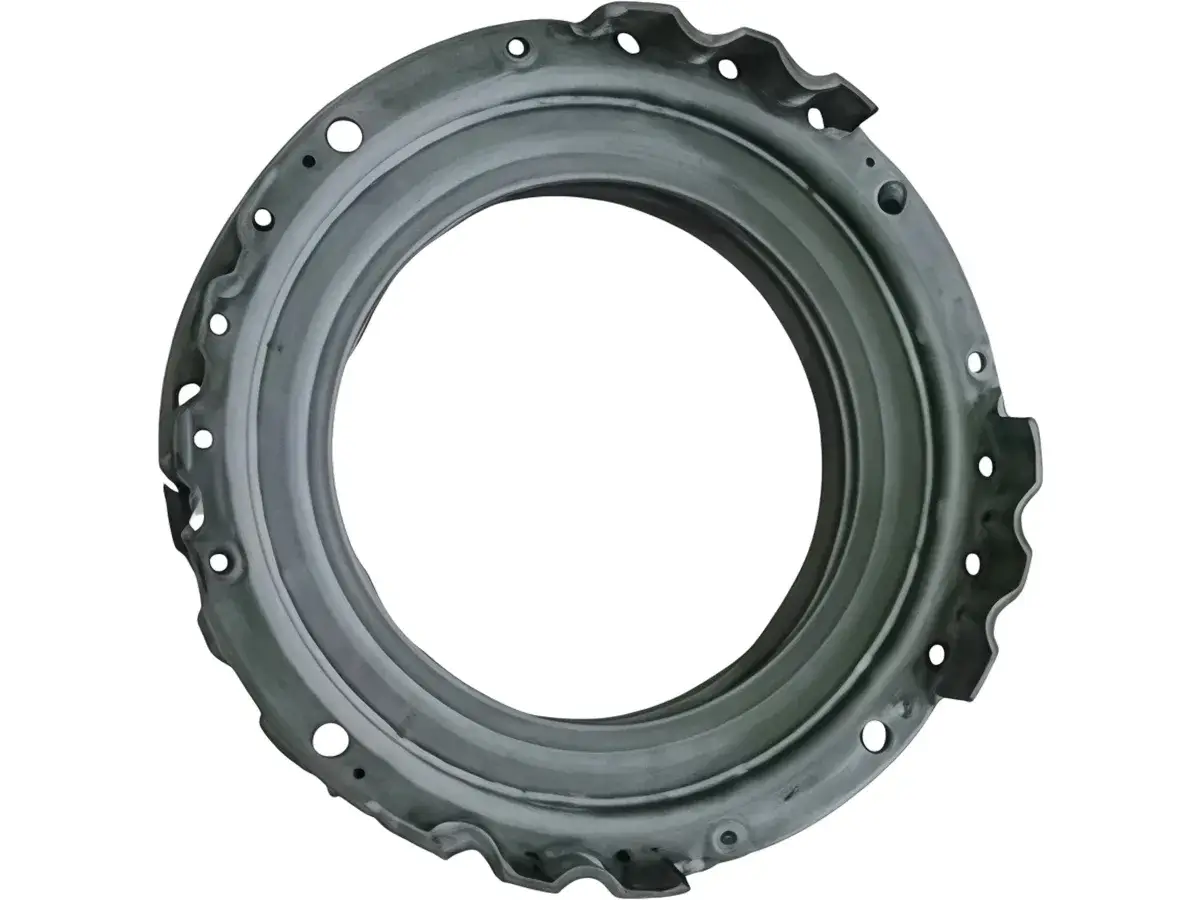

Double Point Straight Side Press, TX2 Series

Keeping the force balanced across the entire stroke is important when working with larger parts or wider dies. The TX2 series double point straight side press is built around this, using a dual-point drive within a closed-frame structure to keep the ram movement steady and controlled. It fits well into continuous production where both accuracy and stable operation need to be maintained over time.

Request a Quote
Technical Specifications
Model Unit TX2-250 TX2-300 TX2-400 TX2-500 TX2-630
Capacity Ton 250 300 400 500 630
Rated Tonnage Point mm 7 7 7 9 9
Strokes Per Minute spm 300 300 300 300 350
Stroke Length mm 20-40 20-40 20-35 20-30 15-30
Die Height (S.D.A.U) mm 600 600 600 650 700
Slide Adjustment mm 150 200 200 250 250
Slide Area (L.R×F.B) mm 2500×1100 2500×1100 2800×1100 3100×1100 3200×1300
Bolster Area (L.R×F.B) mm 2500×1200 2500×1200 2800×1200 3200×1200 3200×1300
Bolster Thickness mm 170 180 190 190 190
Slide Opening (F.B×H) mm 800×550 800×600 900×600 1000×600 1000×600
Worktable Height mm 950 950 950 950 950
Working Energy kg-m 2500 3100 4200 5400 5400
Main Motor kW×4p 22 30 45 55 75
Slide Adjustment Motor kW×4p 2.2 2.2 3.7 3.7 4
Frame Type - One-Piece Frame One-Piece Frame One-Piece Frame One-Piece Frame One-Piece Frame
Features
  • Four-Corner, Eight-Face Guiding System
    The extended guiding structure, combined with a well-designed transmission system, supports stable and precise stamping performance.
  • PLC-Controlled Clutch System
    The dual valve in the clutch system is precisely controlled by PLC, helping ensure coordinated and safe press operation.
  • Circulating Oil Lubrication System
    The oil circulation system improves lubrication efficiency, supporting smoother operation and higher running speeds.
  • Integrated Safety Protection System
    Designed with operator protection features that meet press safety standards, supported by a multifunction electronic control system for safer operation.
