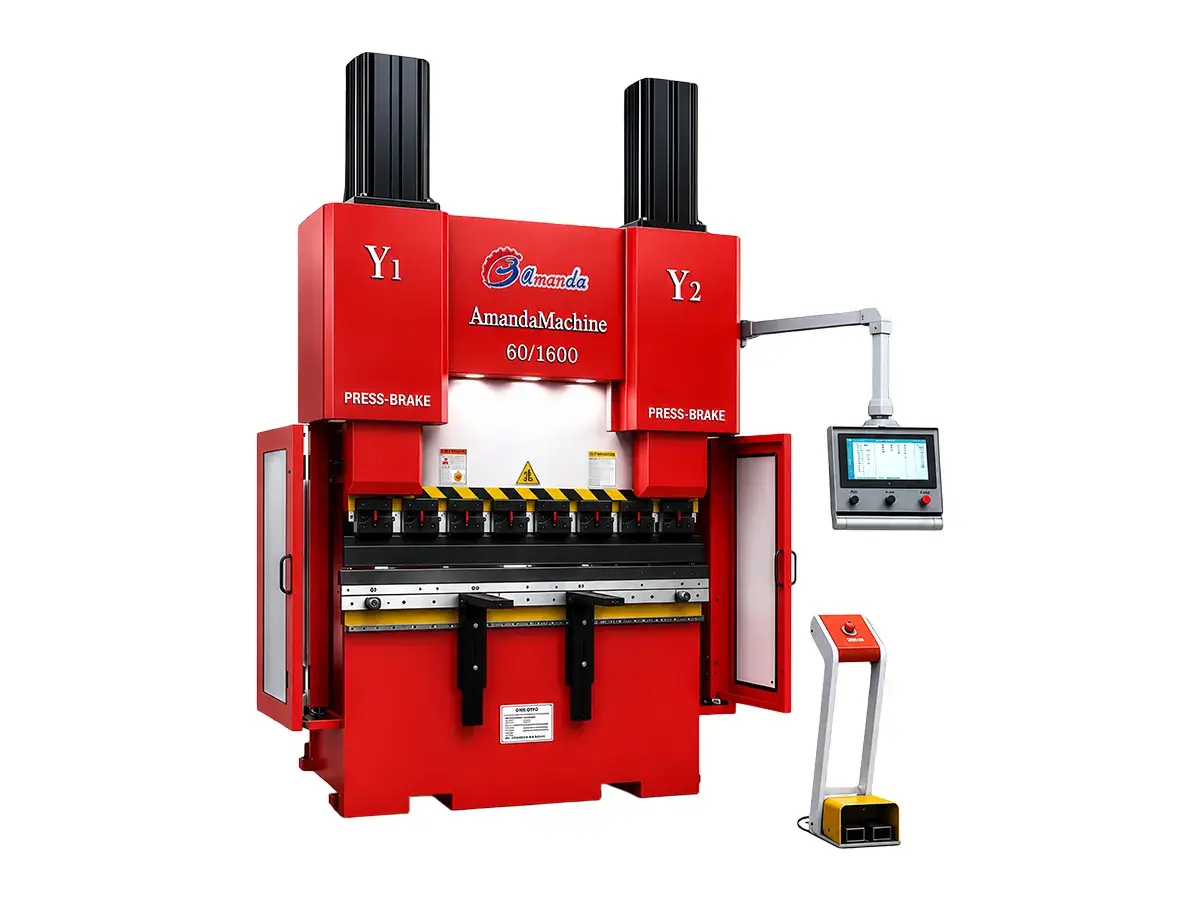

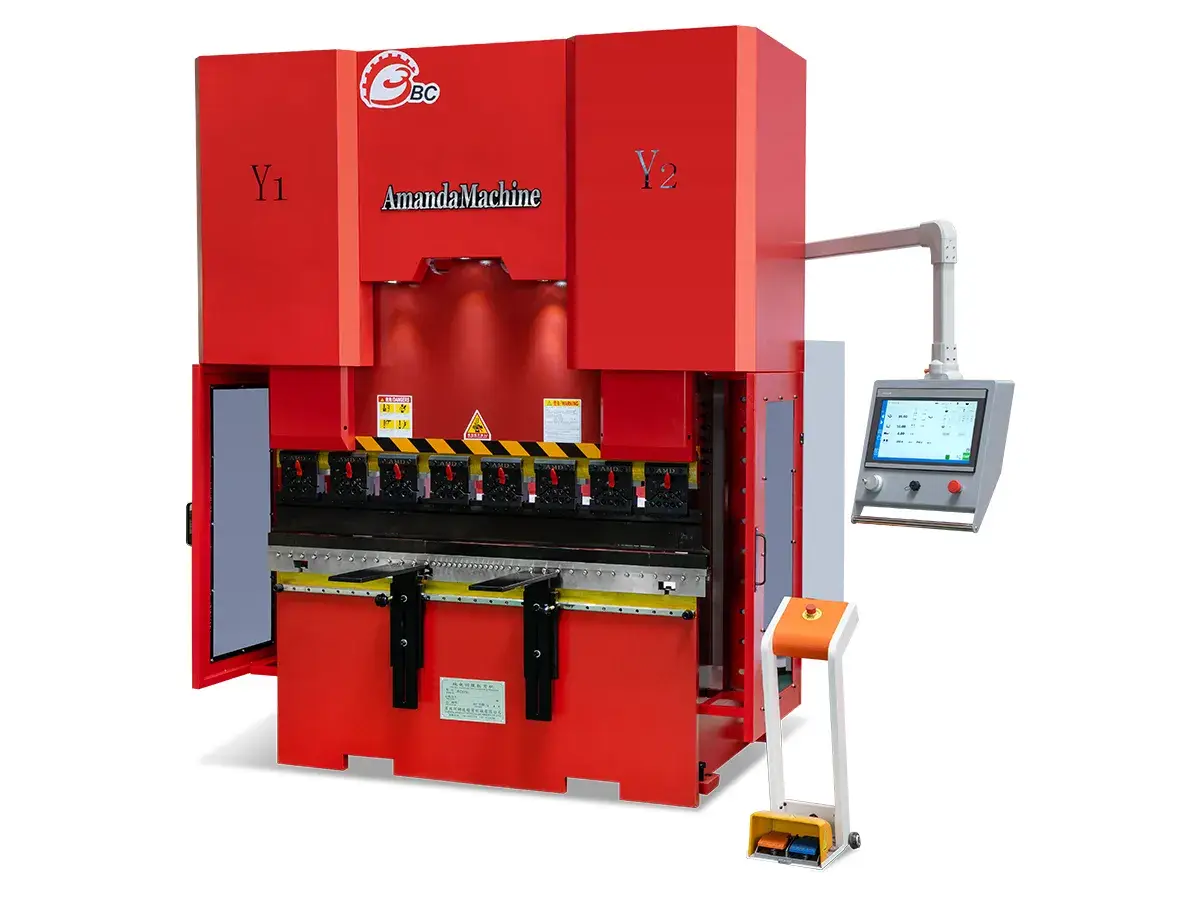

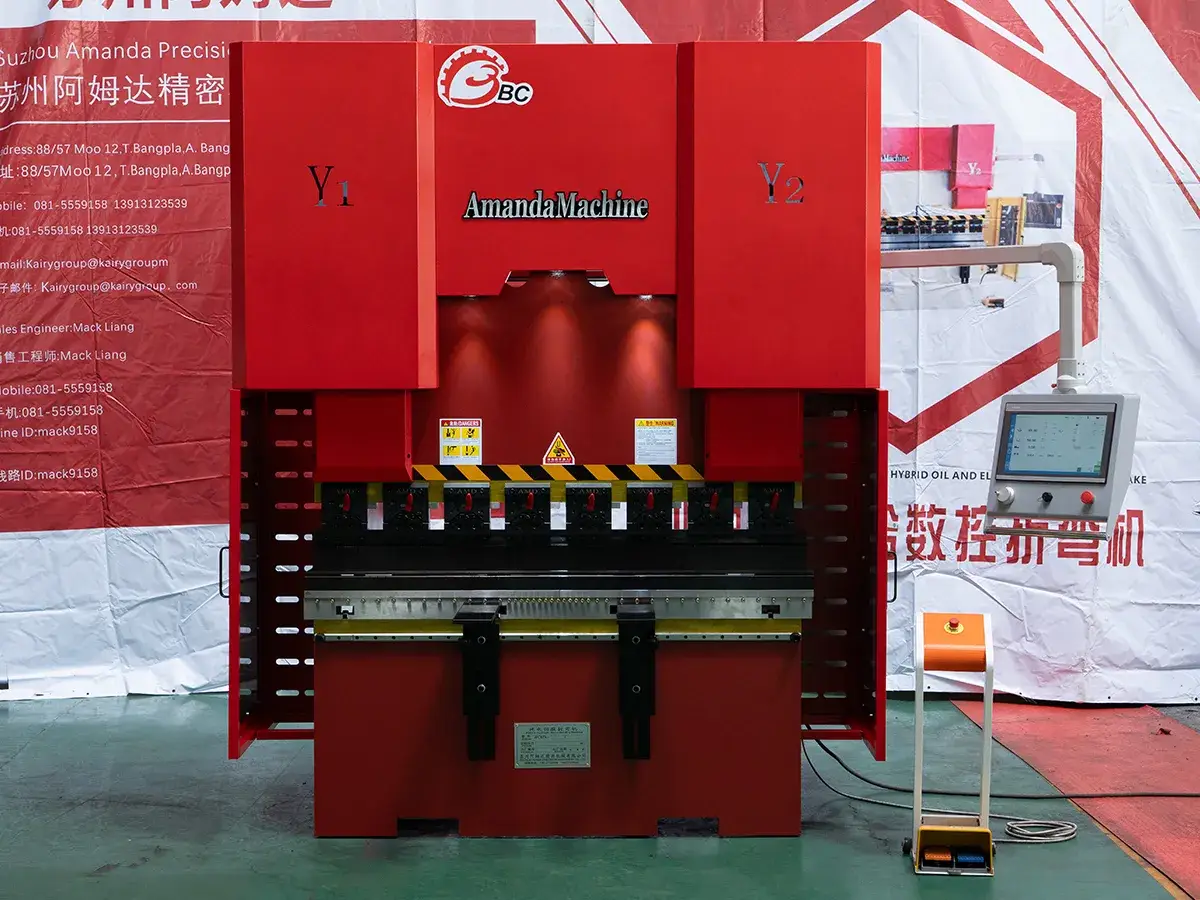

All-Electric Servo CNC Press Brake (Dual-Axis), Sheet Metal Bending Machine
The dual-axis all-electric servo CNC press brake is the flagship model of Amanda's electric press brake series, engineered for manufacturers seeking maximum energy savings, superior bending consistency, and long-term production efficiency. Designed for high-frequency production environments, it combines low operating costs, minimal maintenance requirements, and exceptional precision, making it an ideal solution for modern sheet metal fabrication.
This all-electric CNC press brake is ideal for precision sheet metal manufacturers seeking maximum energy efficiency and long-term cost savings.
Widely used in medical equipment, electrical enclosures, photovoltaic systems, battery cabinets, stainless steel fabrication, aluminum products, and other appearance-critical components requiring exceptional bending consistency and dimensional accuracy.
Powered by dual independent servo motors and precision ball screw transmission, the sheet metal bending machine eliminates hydraulic oil, pumps, and valves found in conventional hydraulic press brakes. This fully electric architecture delivers up to 50–70% lower energy consumption, significantly reduced maintenance costs, and ultra-low operating noise. The dual-axis synchronization system ensures excellent parallelism, repeatability, and bending accuracy, making it particularly competitive in small and medium-tonnage applications with intensive daily production schedules.
| Model | ||||||
| Nominal Force (ton) | 40 / 35 | 40 / 35 | 45 | 60 | 70 | 100 |
| Servo Motor Power (Y-Axis) (kW) | 5.5 / 7.5 | 5.5 / 7.5 | 7.5 | 7.5 | 15 | 20 / 28.7 |
| Gear Reducer Ratio (Y-Axis) | 1:7 / 1:5 | 1:7 / 1:5 | 1:05 | 1:07 | 1:5 (optional angular reducer) | 1:5 (optional angular reducer) |
| Ball Screw (Y-Axis) | 6320×626 | 6320×626 | 6316×656 | 6316×656 | 8016×762 | 8016×762 |
| Bending Length (mm) | 1300 | 1600 | 2200 | 2200 | 2200 | 3200 |
| Sheet Thickness (mm) | 2.5 | 2 | 2 | 2.5 | 3 | 3 |
| Distance Between Columns (mm) | 1130 | 1380 | 1700 | 1700 | 1700 | 2800 |
| Throat Depth (mm) | 300 | 300 | 300 | 300 | 400 | 400 |
| Open Height (mm) | 420 | 420 | 470 | 470 | 500 | 500 |
| Ram Parallelism (mm) | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
| Ram Approach Speed (mm/s) | 190 / 260 | 190 / 260 | 210 | 150 | 160 | 160 |
| Ram Working Speed (mm/s) | 50 | 50 | 50 | 50 | 50 | 50 |
| Ram Return Speed (mm/s) | 190 / 260 | 190 / 260 | 210 | 150 | 160 | 160 |
| X-Axis Speed (mm/s) | 500 | 500 | 500 | 500 | 500 | 500 |
| R-Axis Speed (mm/s) | 200 | 200 | 200 | 200 | 200 | 200 |
| Z1 / Z2 Axes Speed (mm/s) | 400 | 400 | 400 | 400 | 400 | 400 |
| Y-Axis Repeatability (mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| X-Axis Repeatability (mm) | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| R-Axis Repeatability (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Z1 / Z2 Axes Accuracy (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Ram Stroke (Y-Axis Travel) (mm) | 150 | 150 | 180 | 180 | 200 | 200 |
| X-Axis Travel (mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| R-Axis Travel (mm) | 140 | 140 | 140 | 140 | 140 | 140 |
| Z1 / Z2 Travel (mm) | 400 | 600 | 600 | 600 | 600 | 600 |
| CNC Control System | SL100-PS (15.6") | SL100-PS (15.6") | SL100-PS (15.6") | SL100-PS (15.6") | SL100-PS (15.6") | SL100-PS (15.6") |
| Power Supply Cable (mm²) | 6 | 6 | 6 | 6 | 10 | 10 |
| Average Power Consumption (kW) | 2 | 2 | 2 | 2 | 3 | 4 |
| Installed Power (380V) (kW/A) | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 | 30 / 60 | 40 / 80 |
| Overall Dimensions (L×W×H) (mm) | 1450×1300×2380 / 2430 | 1700×1300×2380 / 2430 | 2200×1360×2550 | 2200×1360×2550 | 2200×1600×2840 / 2540 | 3200×1700×2920 / 2540 |
| Weight (kg) | 2000 | 2500 | 3600 | 3600 | 4000 | 6500 |
-

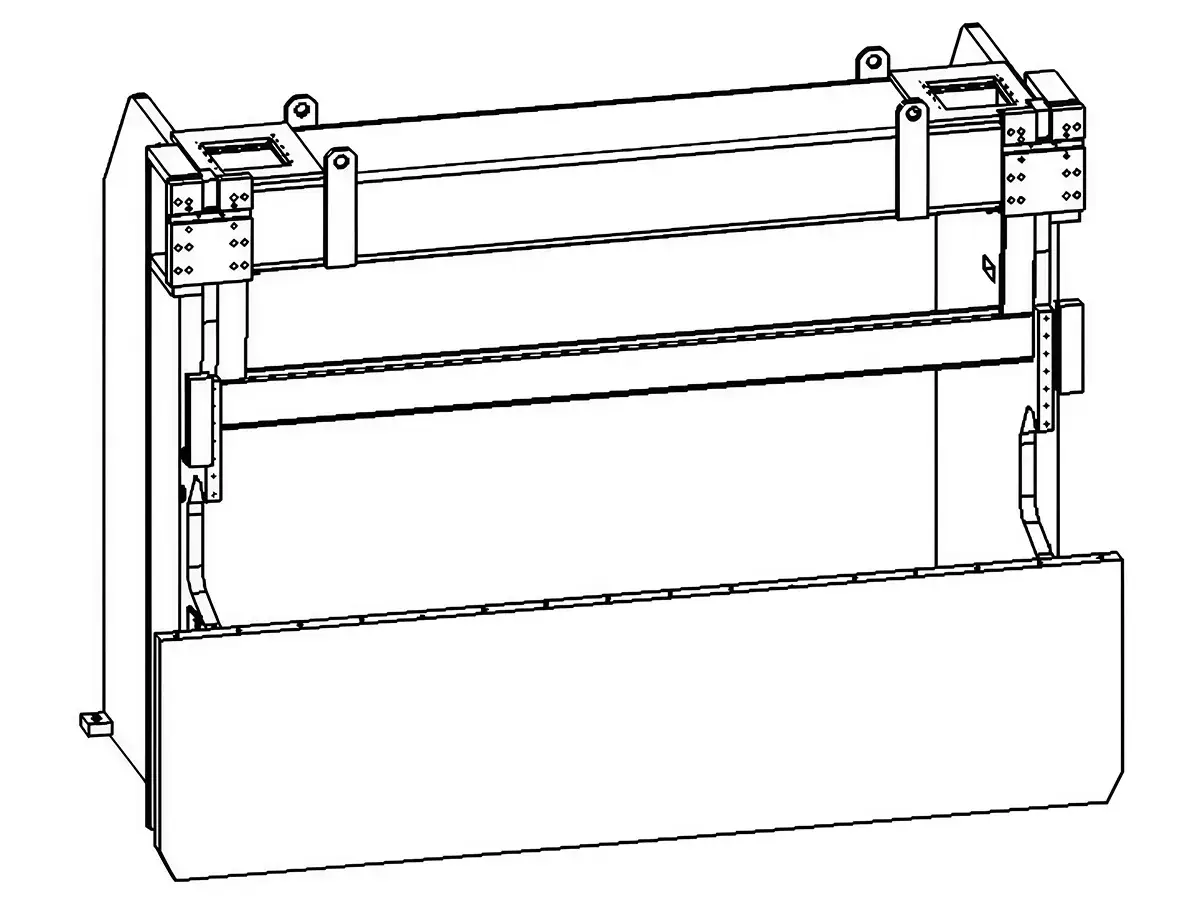

Machine Structure

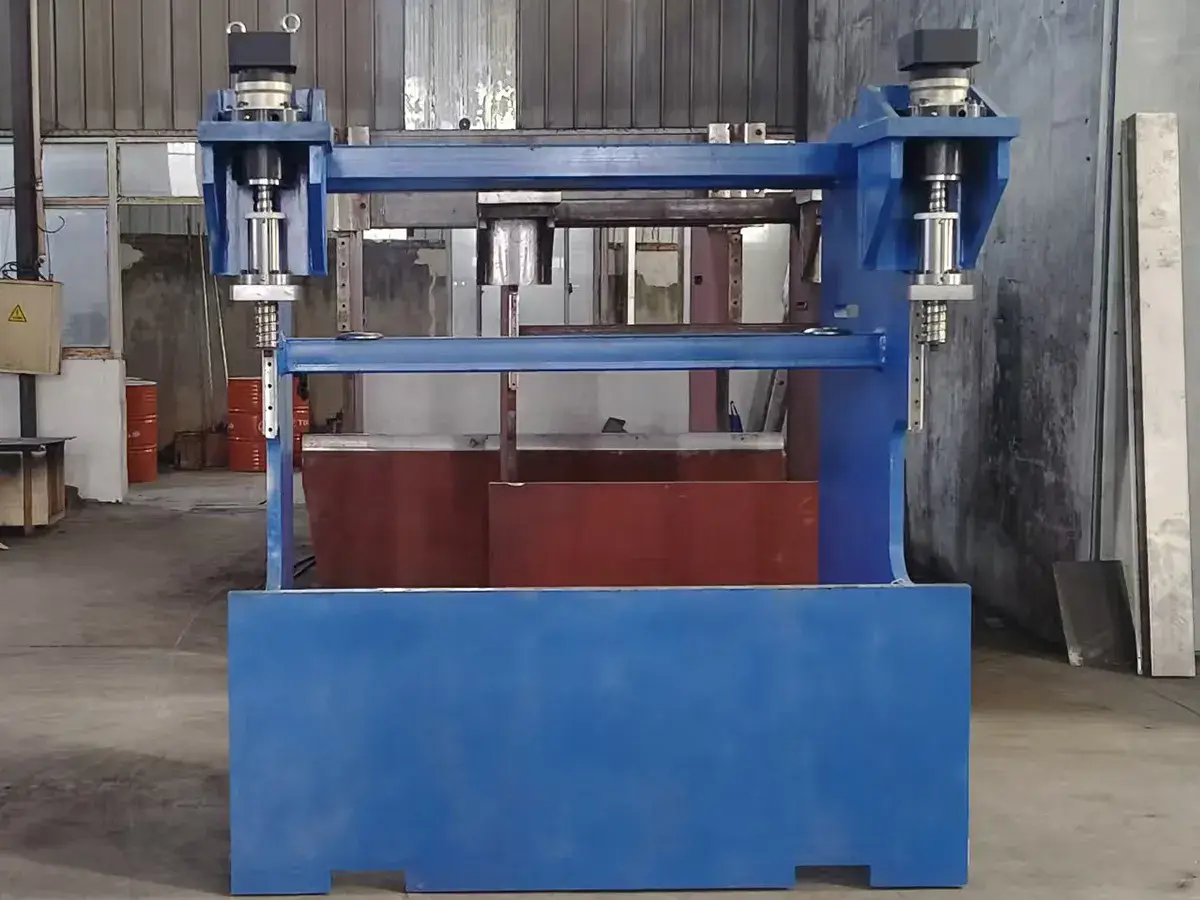

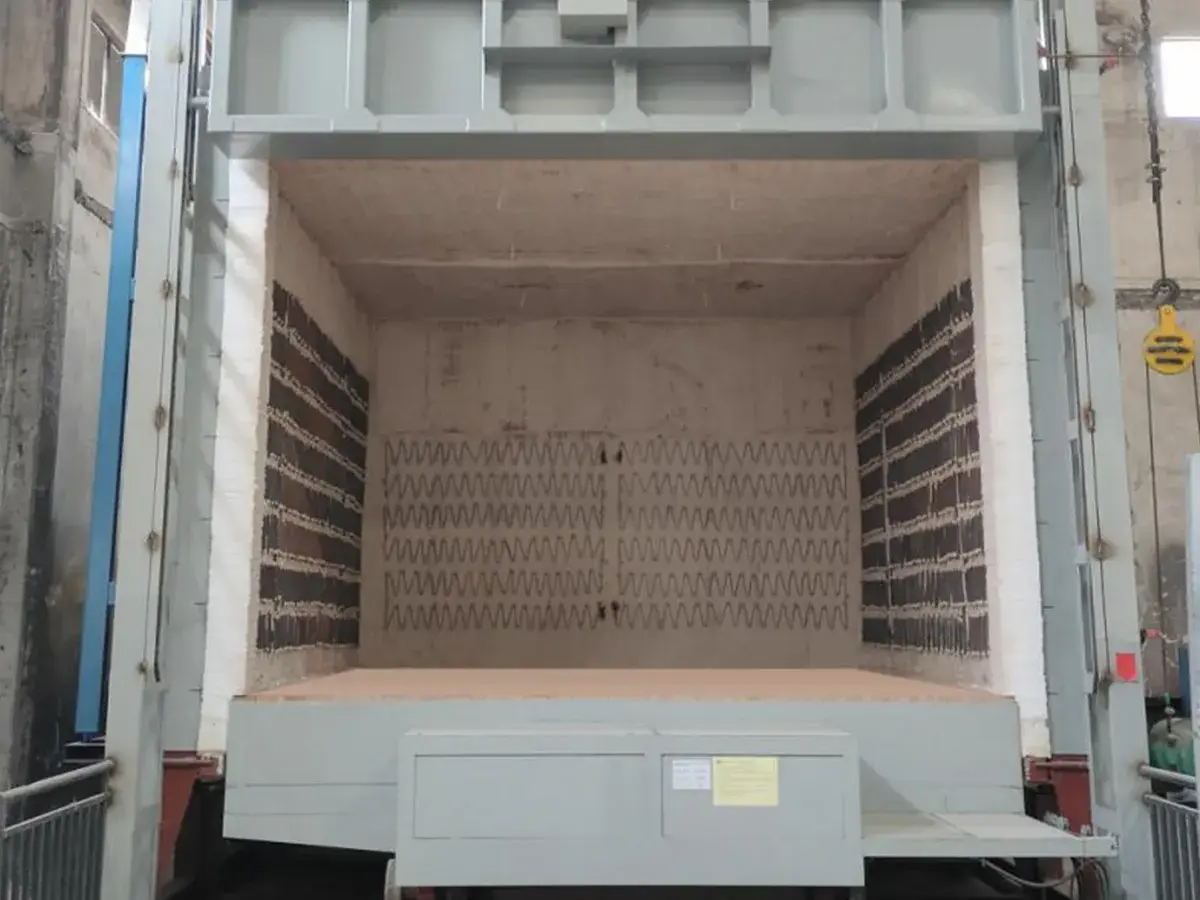

An all-steel welded structure is used to build the machine frame, which also includes the bed and moving beam. Its symmetrical design keeps the weight evenly balanced on both sides of the column. A stable support is provided by reinforced internal ribs and a well-proportioned connection between the main drive housing and columns. The overall structure is optimized through finite element analysis to ensure sufficient strength, rigidity, and long-term stability. To prevent deformation after machining, the frame undergoes full annealing to eliminate internal stress, followed by one-time precision machining using large five-face machining centers, ensuring high geometric accuracy and consistent long-term performance.
-

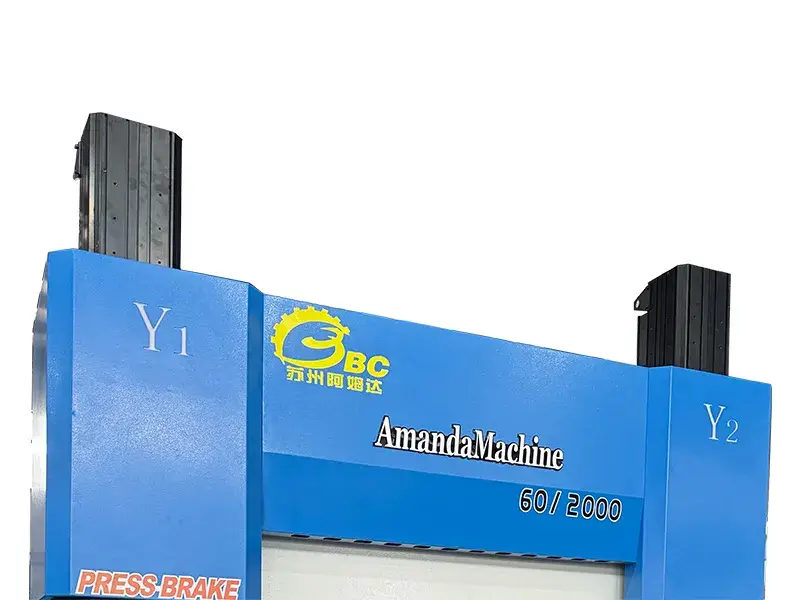

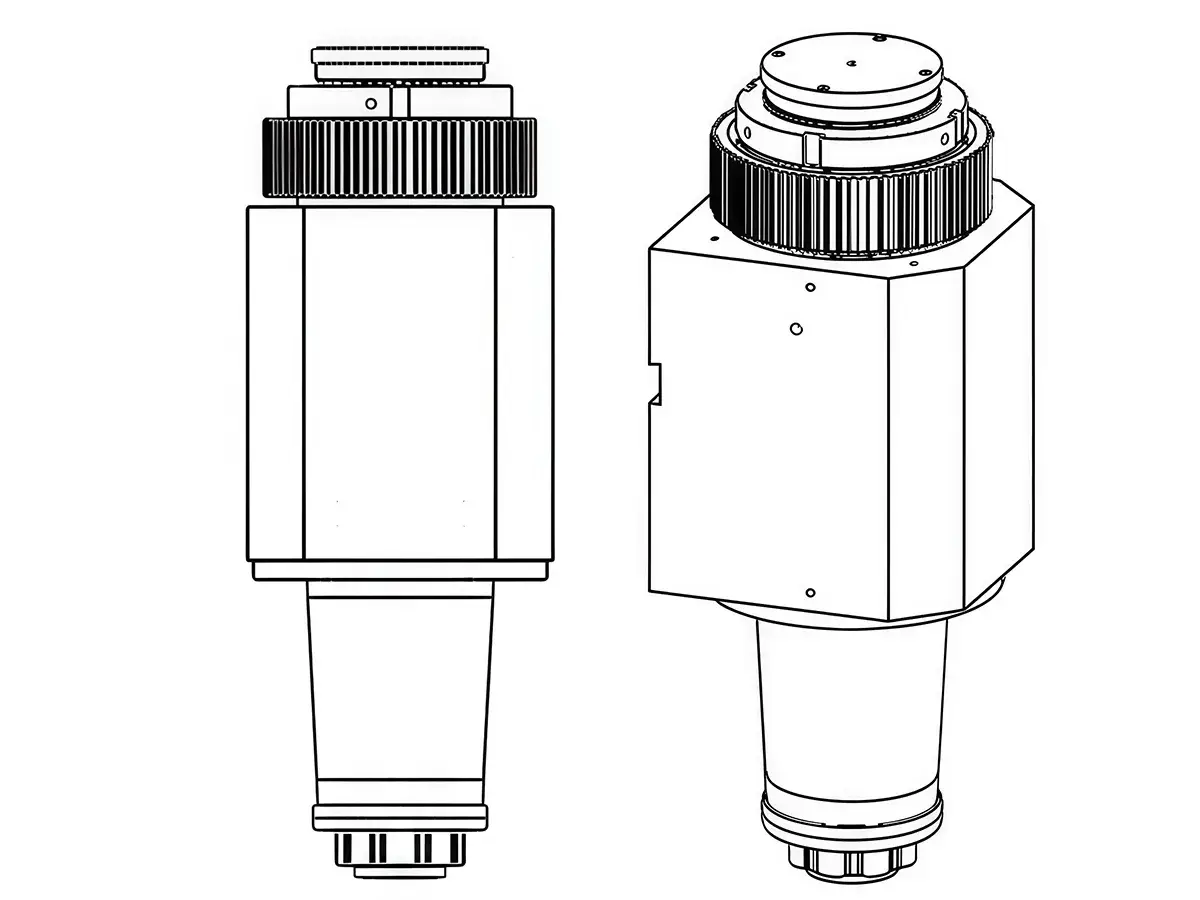

Main Drive System

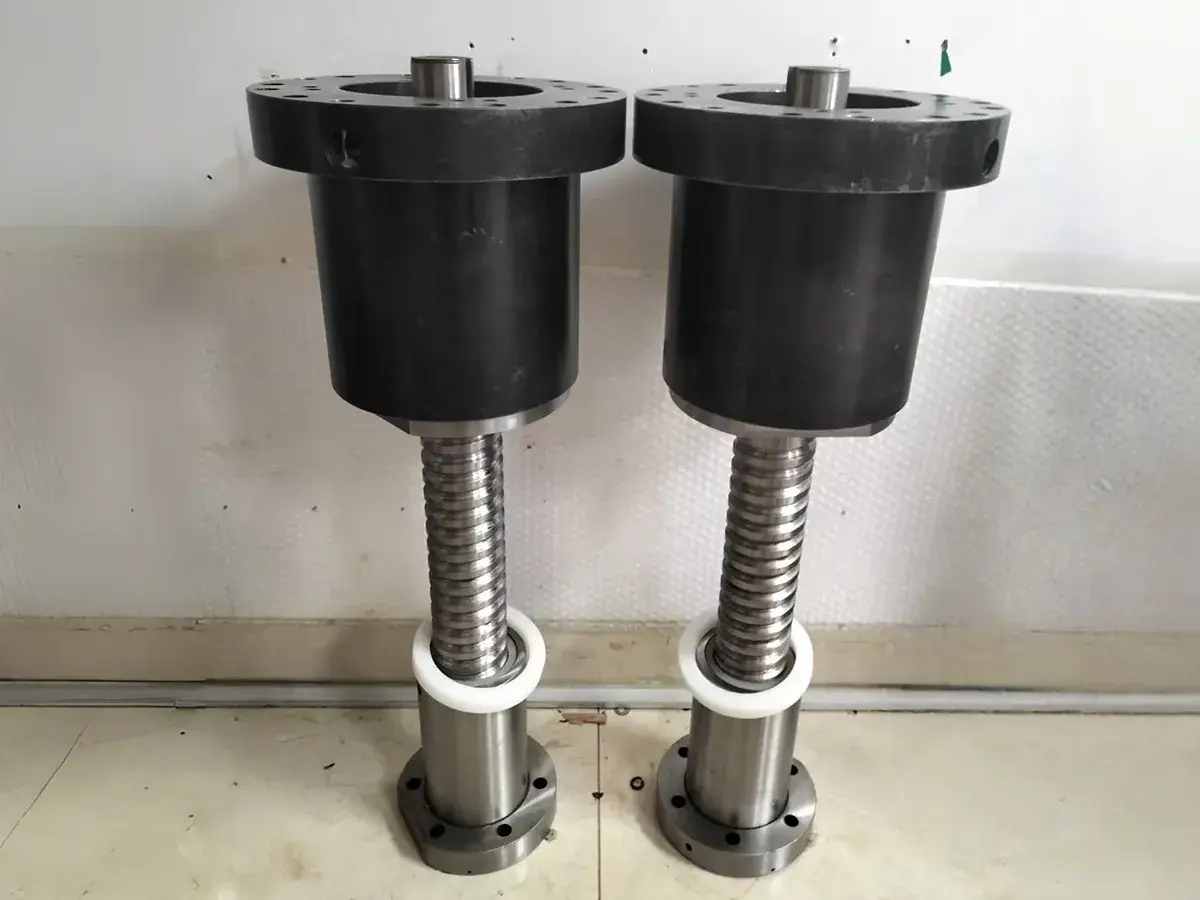

The main drive system transmits bending force through heavy-duty ball screws and bearings, designed for long service life. The key components are sealed and protected from dust and external contamination, helping maintain stable performance over time.
-

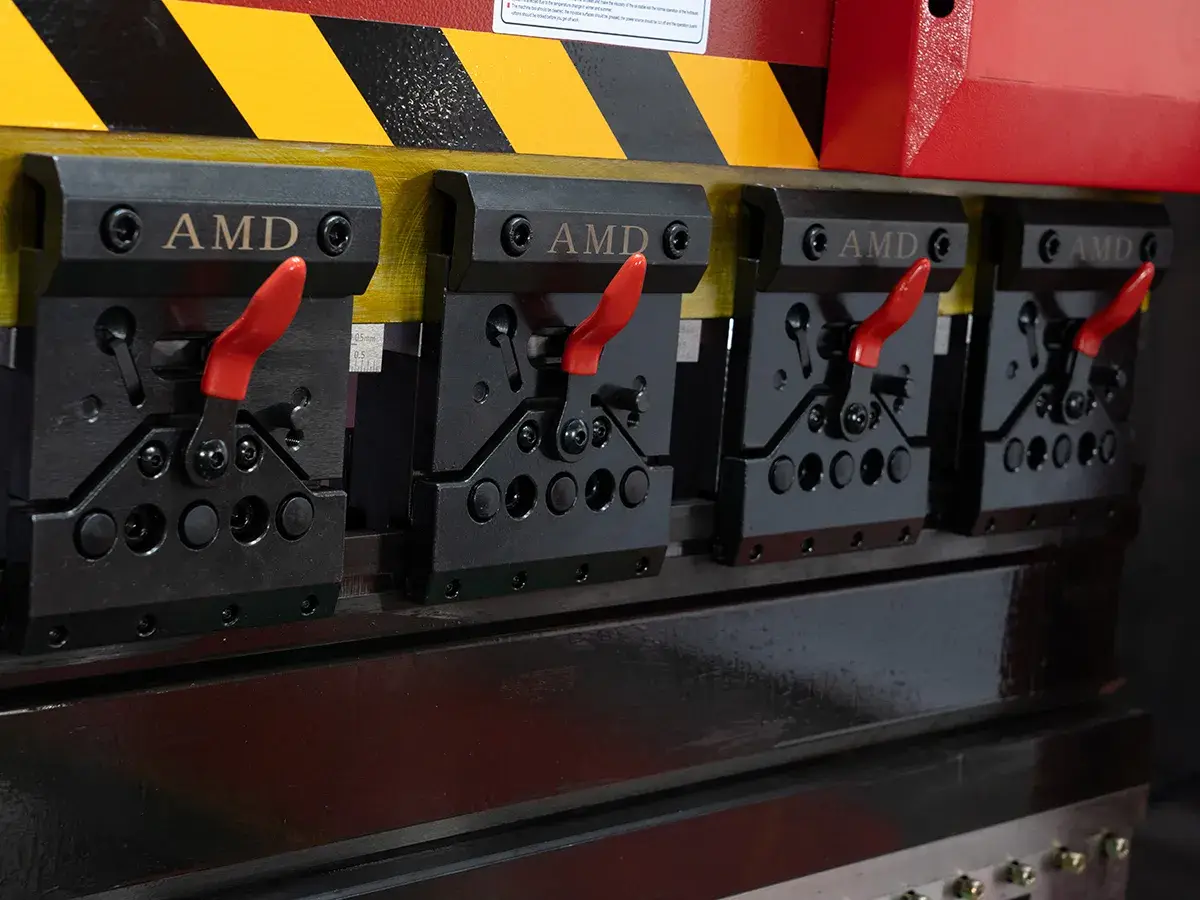

Sectional Punch Quick Clamping

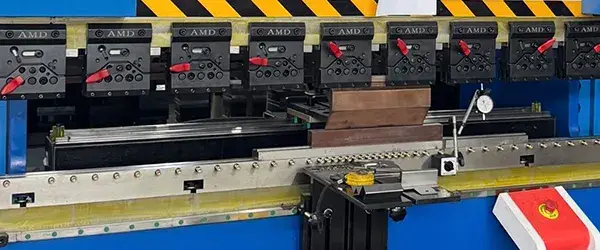

Manual Quick Clamp: Fast tool changes, flexible tooling combinations, and reliable clamping performance.
Pneumatic Quick Clamp (Optional): Automatic tool locking for improved efficiency, consistent clamping force, and enhanced bending quality.
-
Universal Die Base System
Compatible with industry-standard tooling and designed for stable, accurate, and reliable bending performance. Optional mechanical crowning is available for enhanced angle consistency.
-

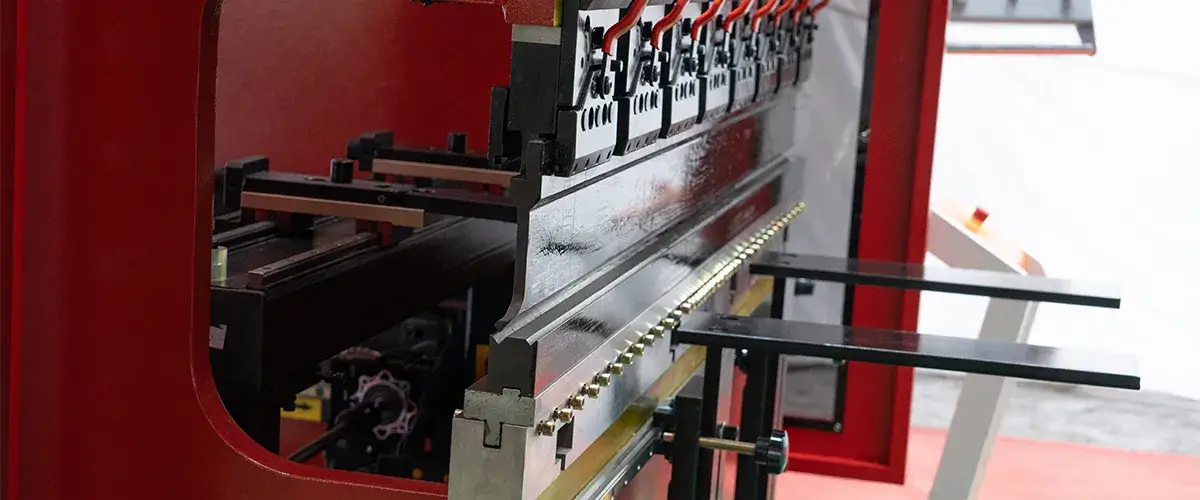

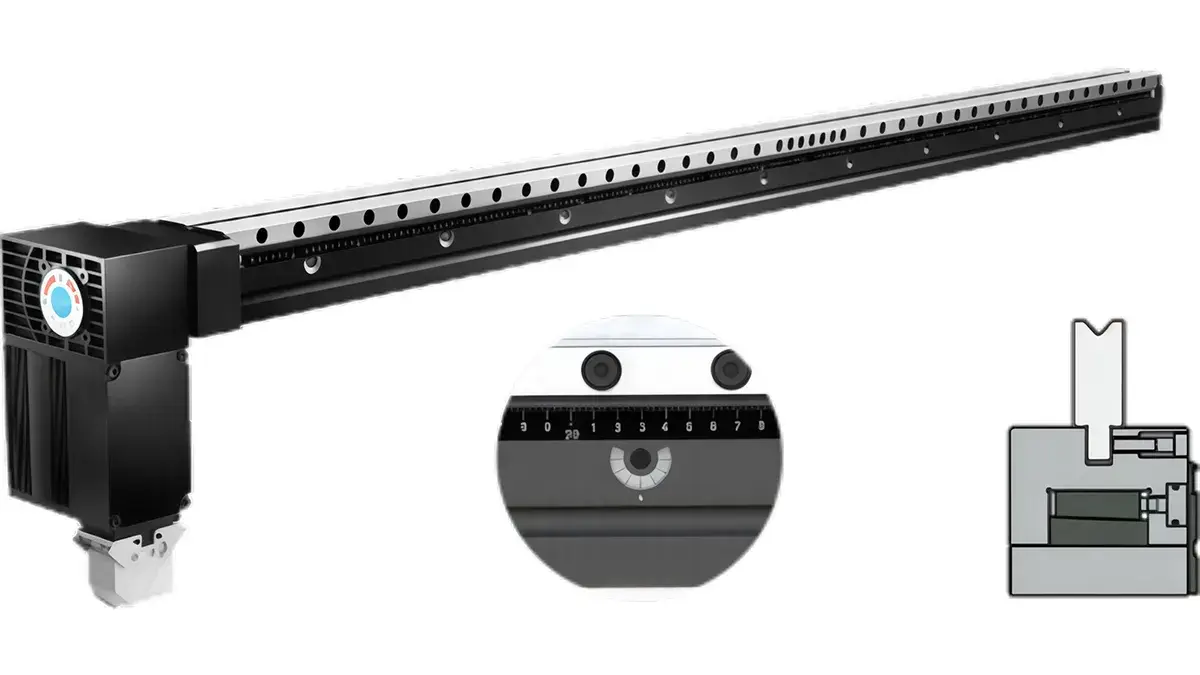

Crowning System
The worktable is equipped with an integrated high-precision crowning structure, featuring a lower crowning unit and a segmented upper adjustment mechanism. A front-mounted fine adjustment system with scale indication allows intuitive and precise setup. The system is supported by an integrated motor drive, aluminum alloy protection plate, and scale ruler, ensuring consistent bending accuracy across the full length.
-

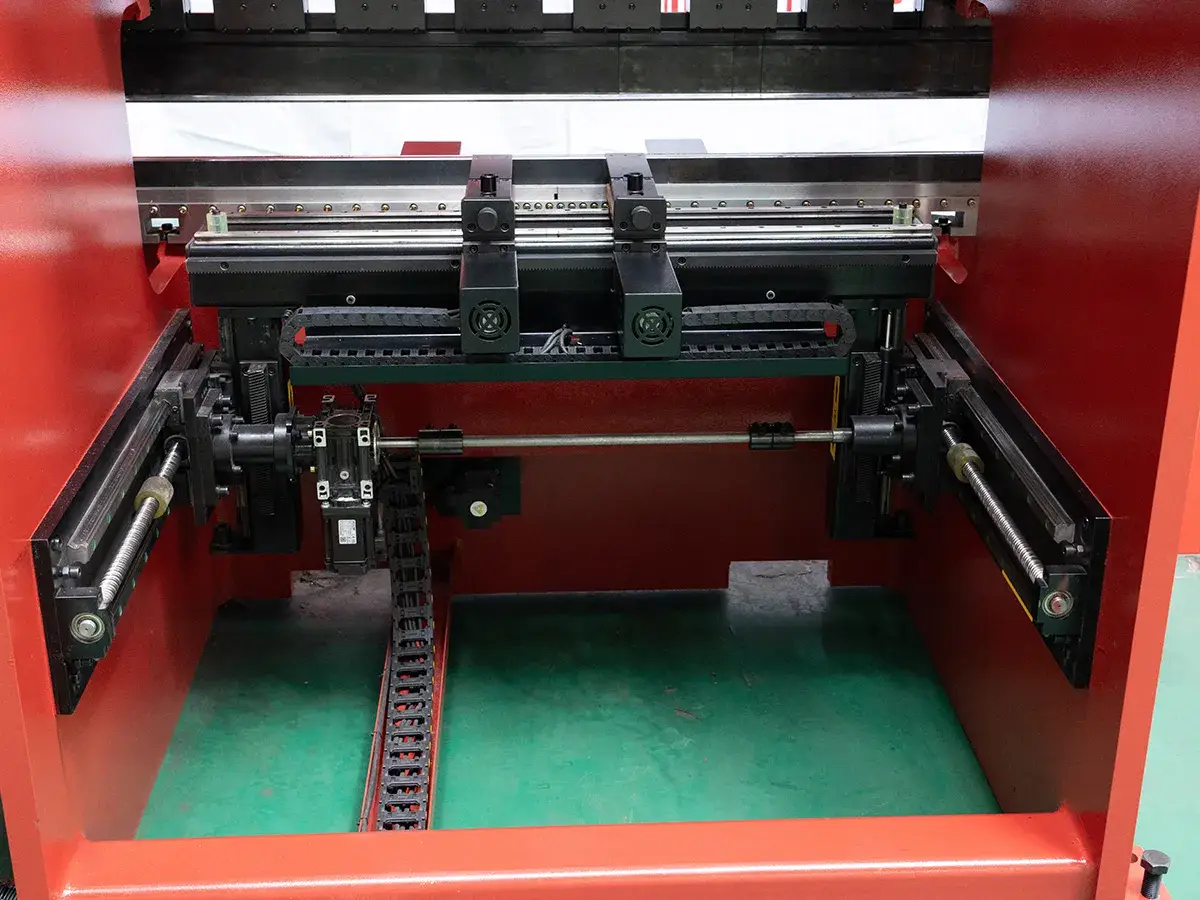

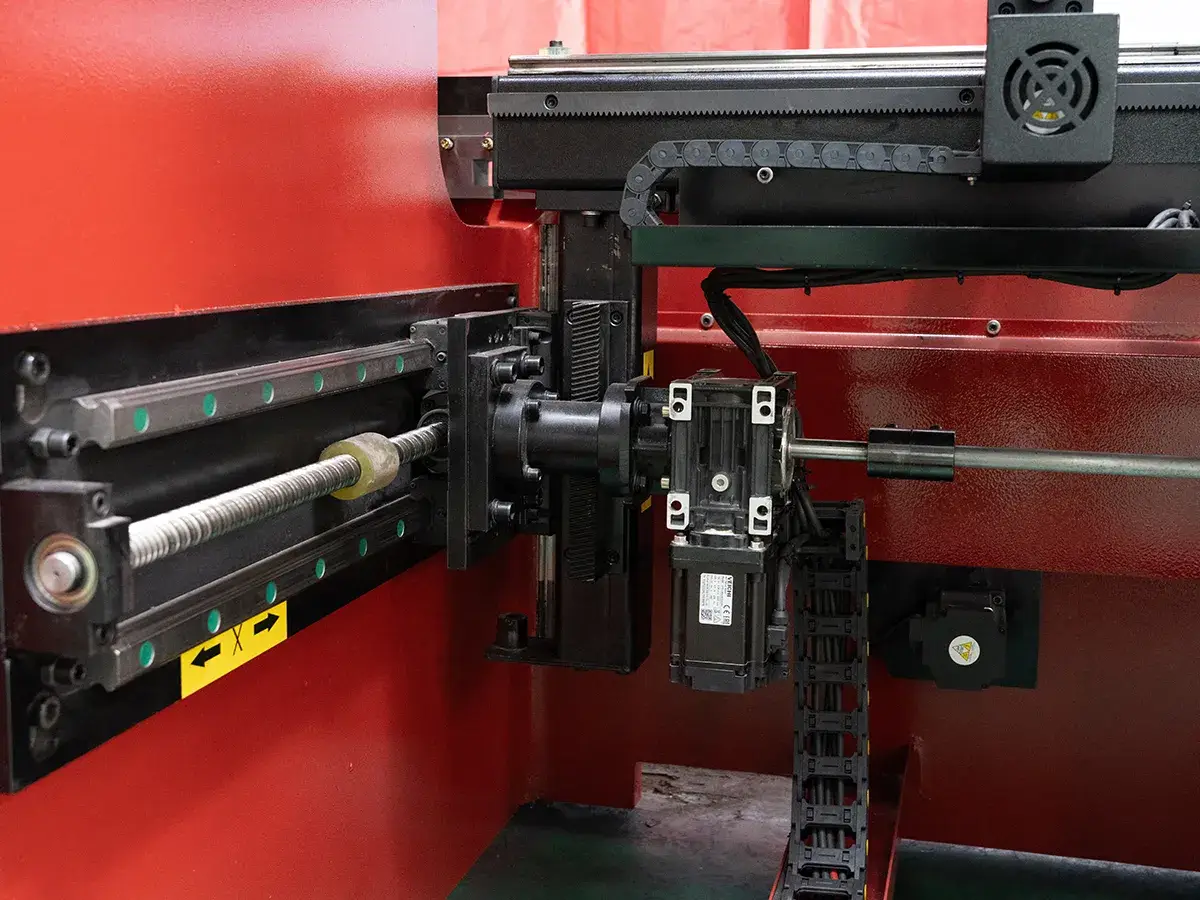

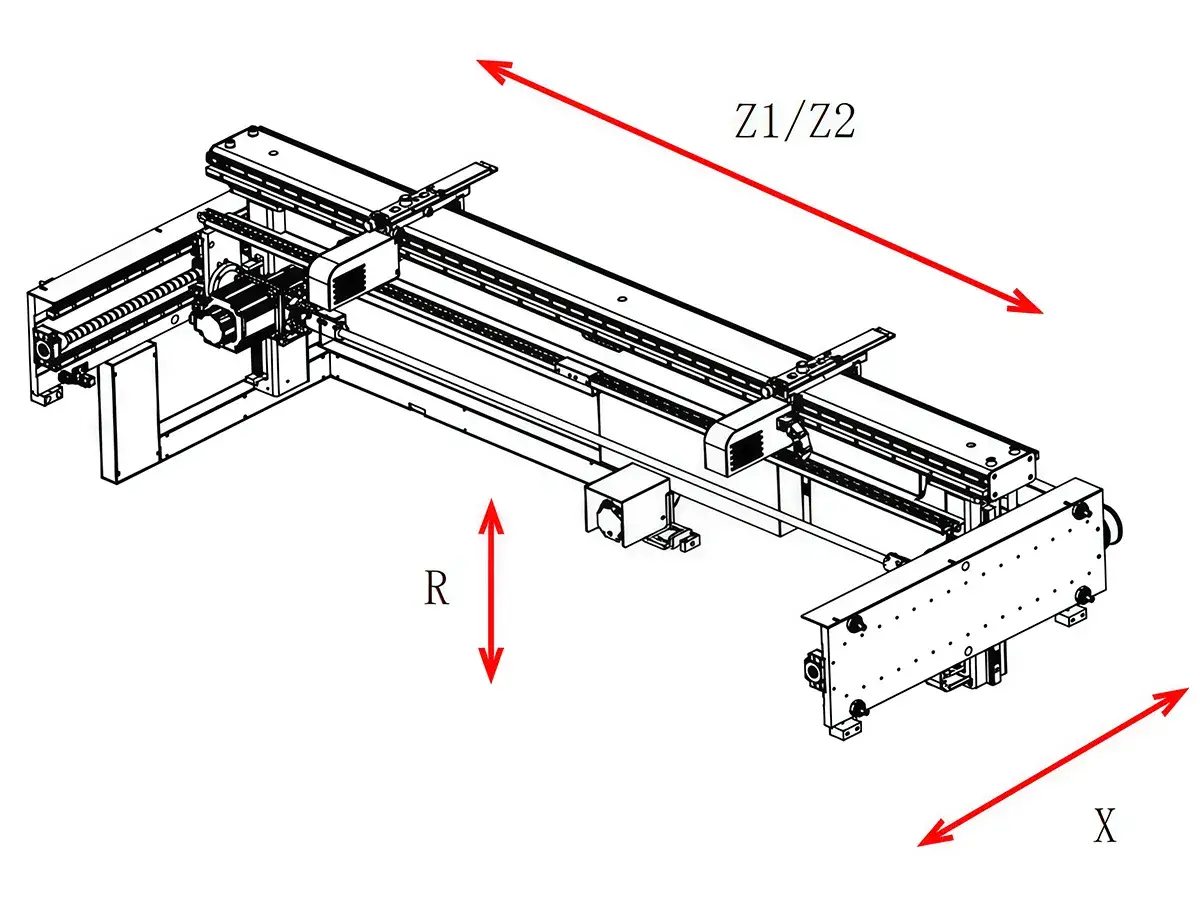

Backgauge System
The backgauge is designed with four controlled axes and is powered by AC servo motors paired with high-precision gear reducers. Controlled by the CNC system, it moves quickly and accurately to the required position. During operation, the backgauge can automatically retract to avoid interference with the workpiece, ensuring smooth and safe bending.
-
Press Brake Tooling
All press brake tooling is heat-treated and precision-ground, with tight tolerances maintained on all critical dimensions to ensure accurate bending results. High-precision tooling reduces the need for secondary corrections, lowering processing costs while extending tool life compared to standard tooling.
-

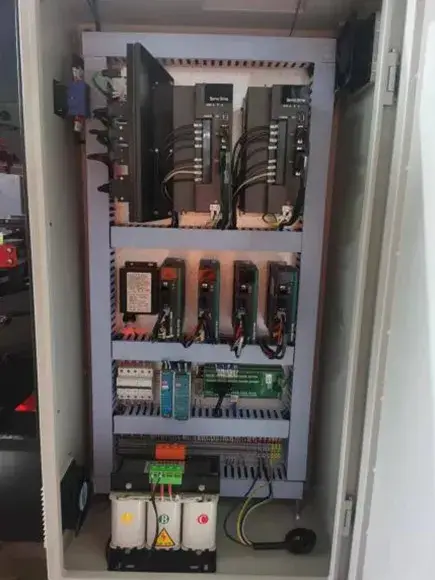

Electrical System

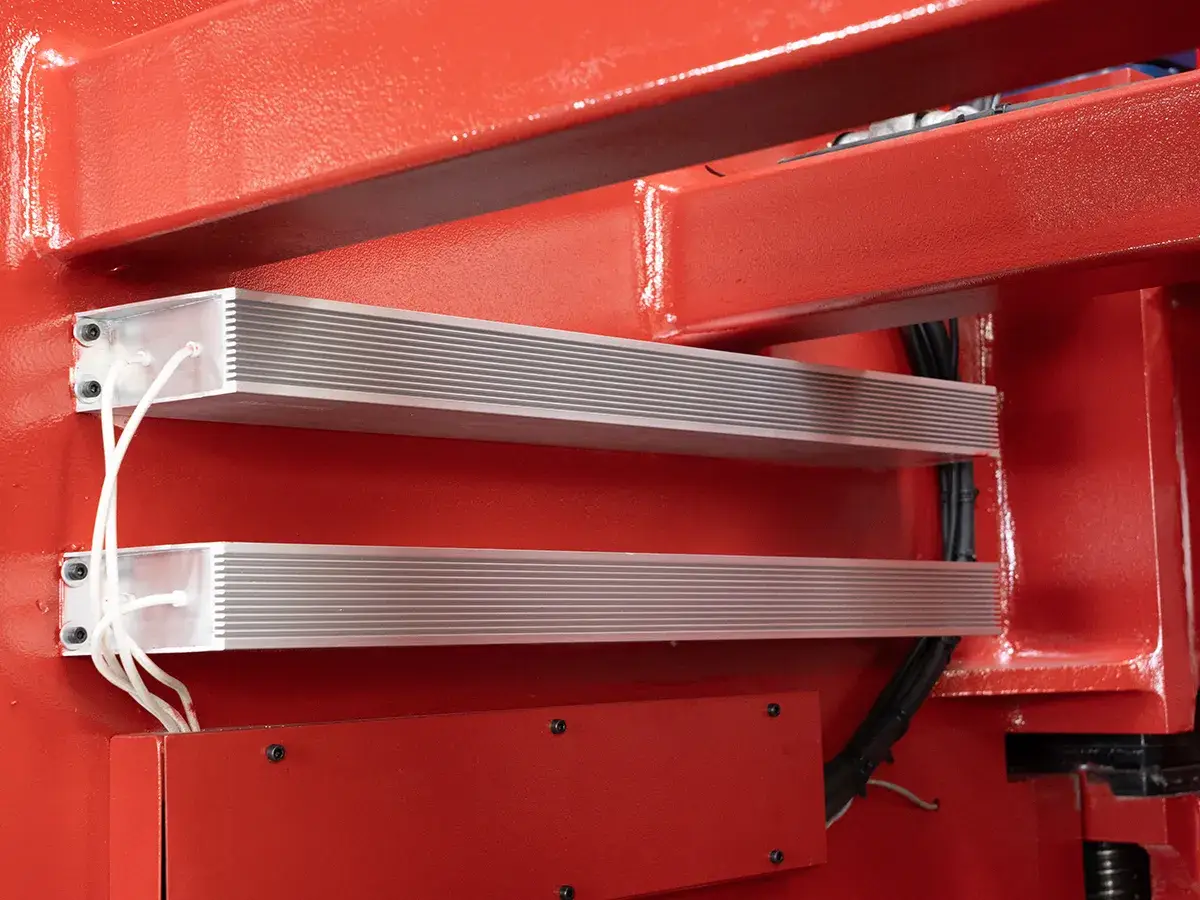

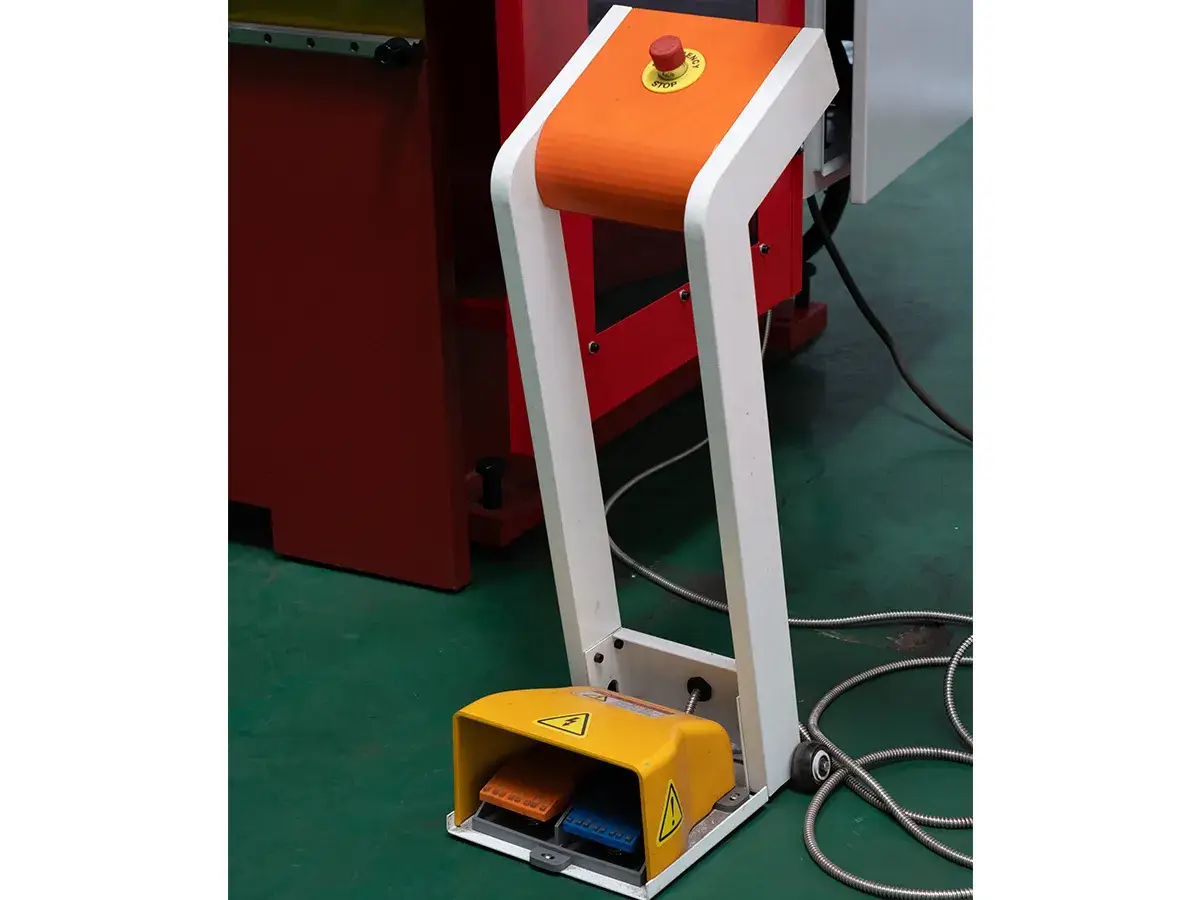

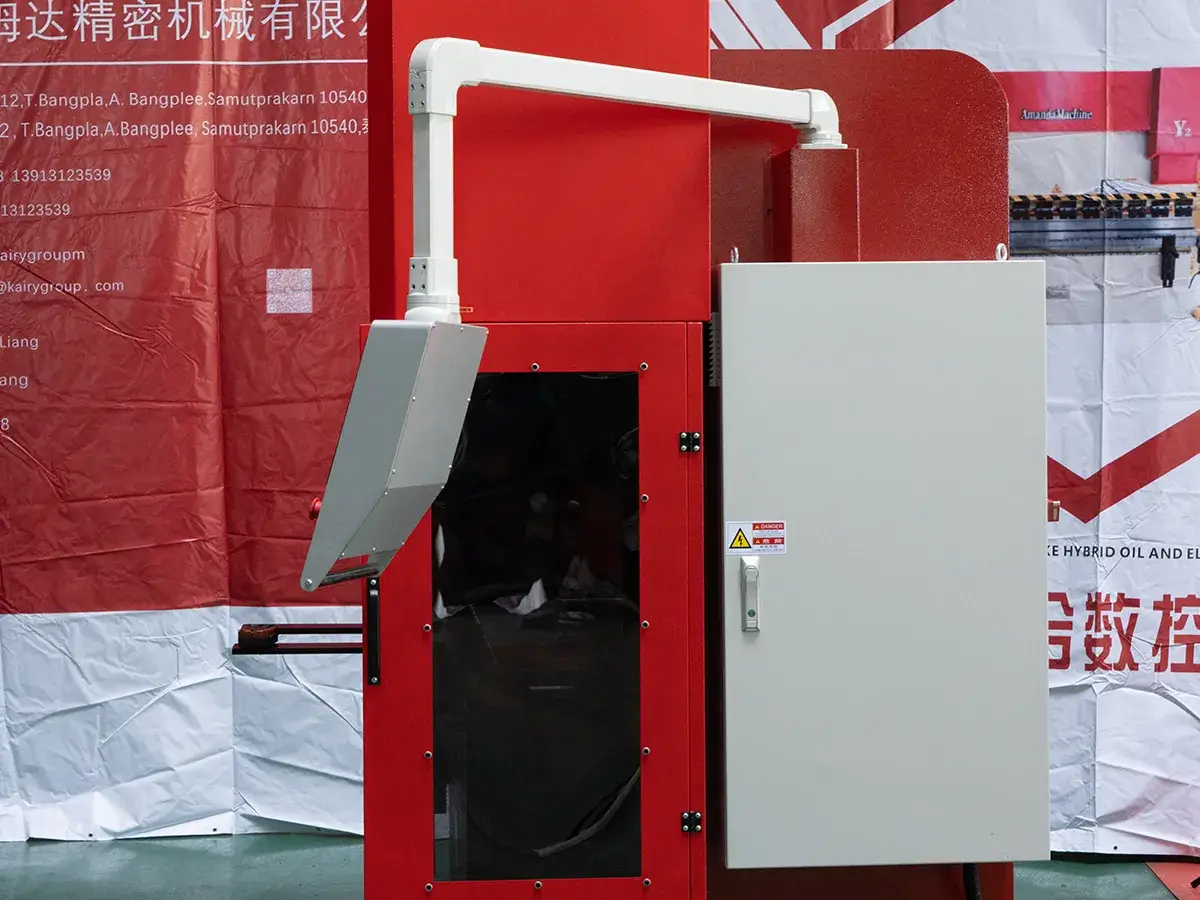

The electrical system includes self-diagnostic functions, allowing operators to monitor machine status in real time through indicators and display screens. The enclosed electrical cabinet uses vertical airflow cooling to maintain stable operation of electrical components. The press brake is also equipped with alarm systems and emergency stop functions to prevent damage in case of unexpected conditions, with fault information clearly displayed for quick response.
-

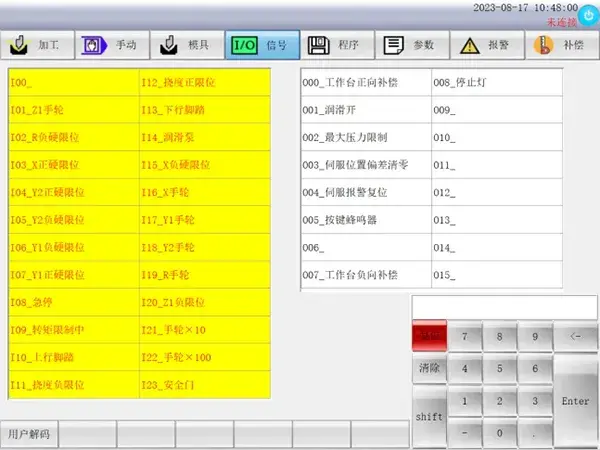

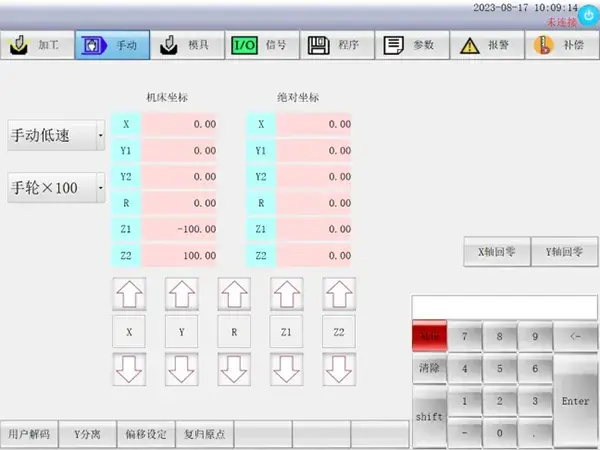

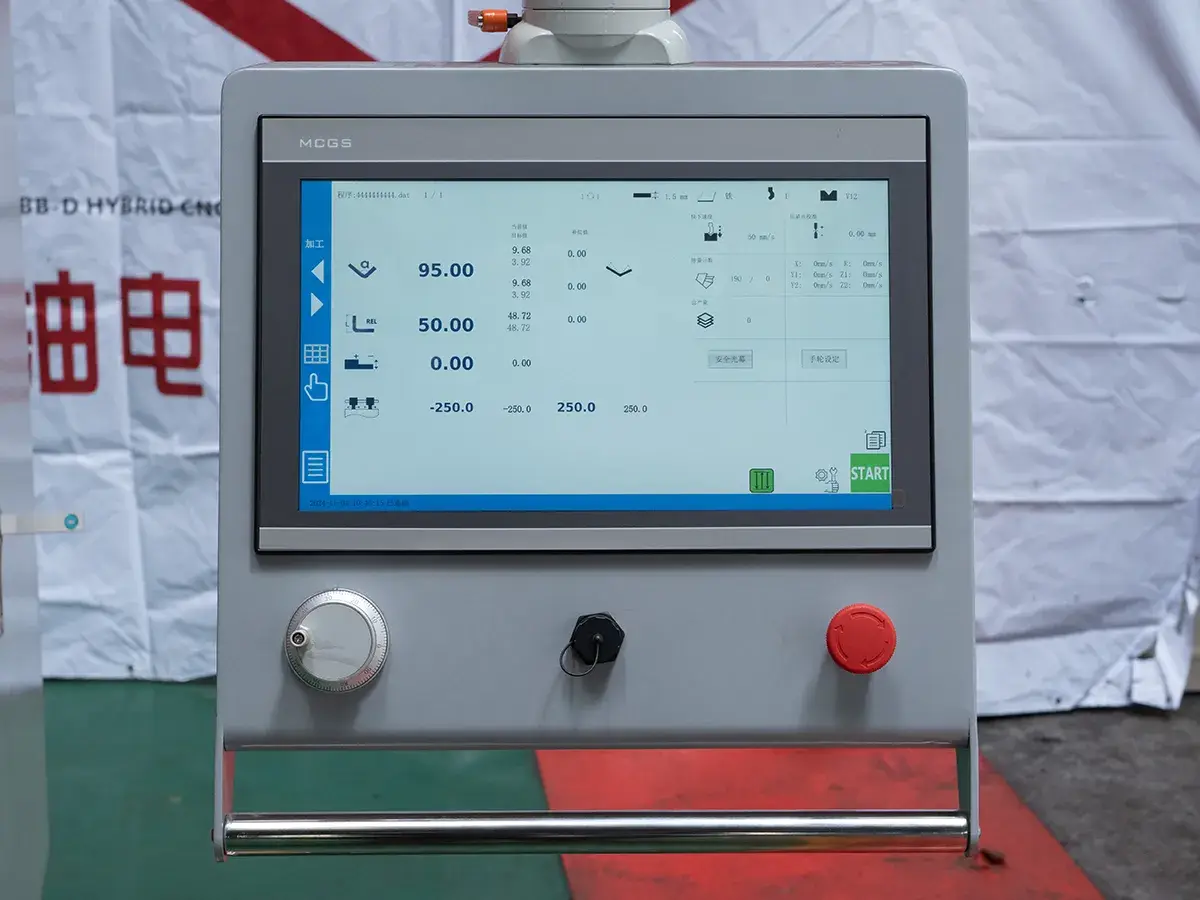

CNC Control System
The SL100-P CNC system is built with an industrial-grade motherboard and advanced bending algorithms, ensuring stable performance even in demanding industrial environments. It has passed EMC compatibility as well as high and low temperature testing to maintain reliability under varying conditions. Equipped with a 15-inch high-definition touchscreen, the system features a clear and intuitive interface with direct programming capability, allowing operators to start production by simply inputting key parameters such as backgauge position and bending angle, improving efficiency while reducing operational complexity.
-
Premium Tooling Solutions
High-quality alloy steel tooling with full-body heat treatment ensures long service life, excellent wear resistance, and reliable bending accuracy. Segmented tooling design improves flexibility and production efficiency.
