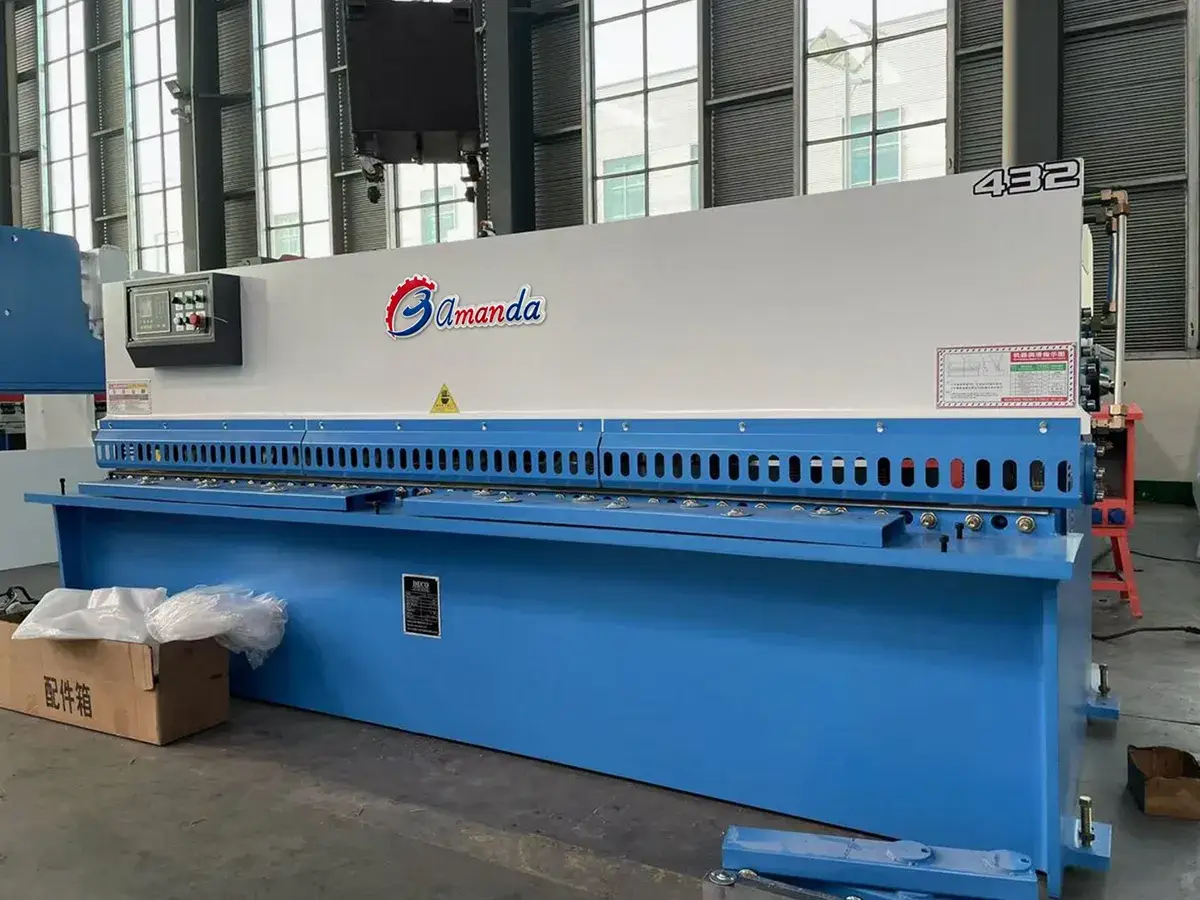

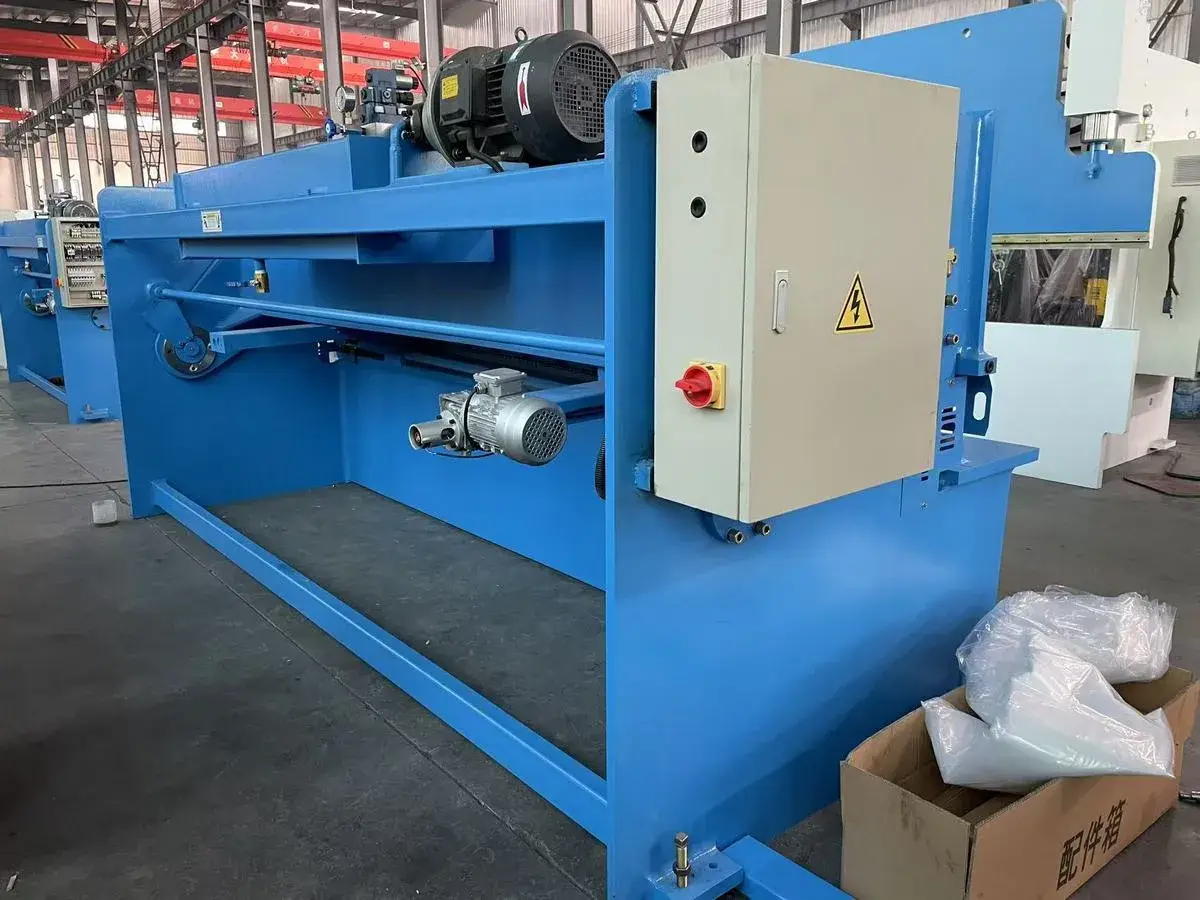

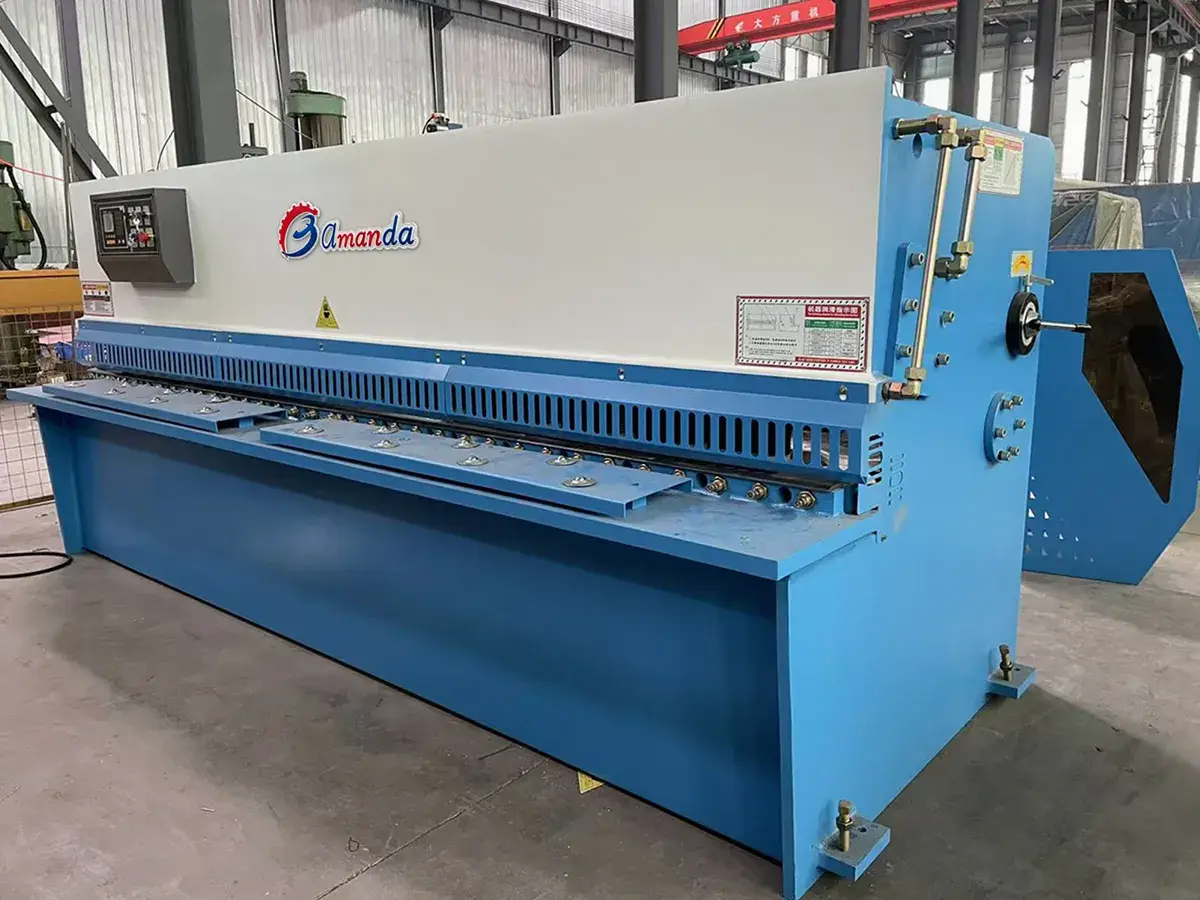

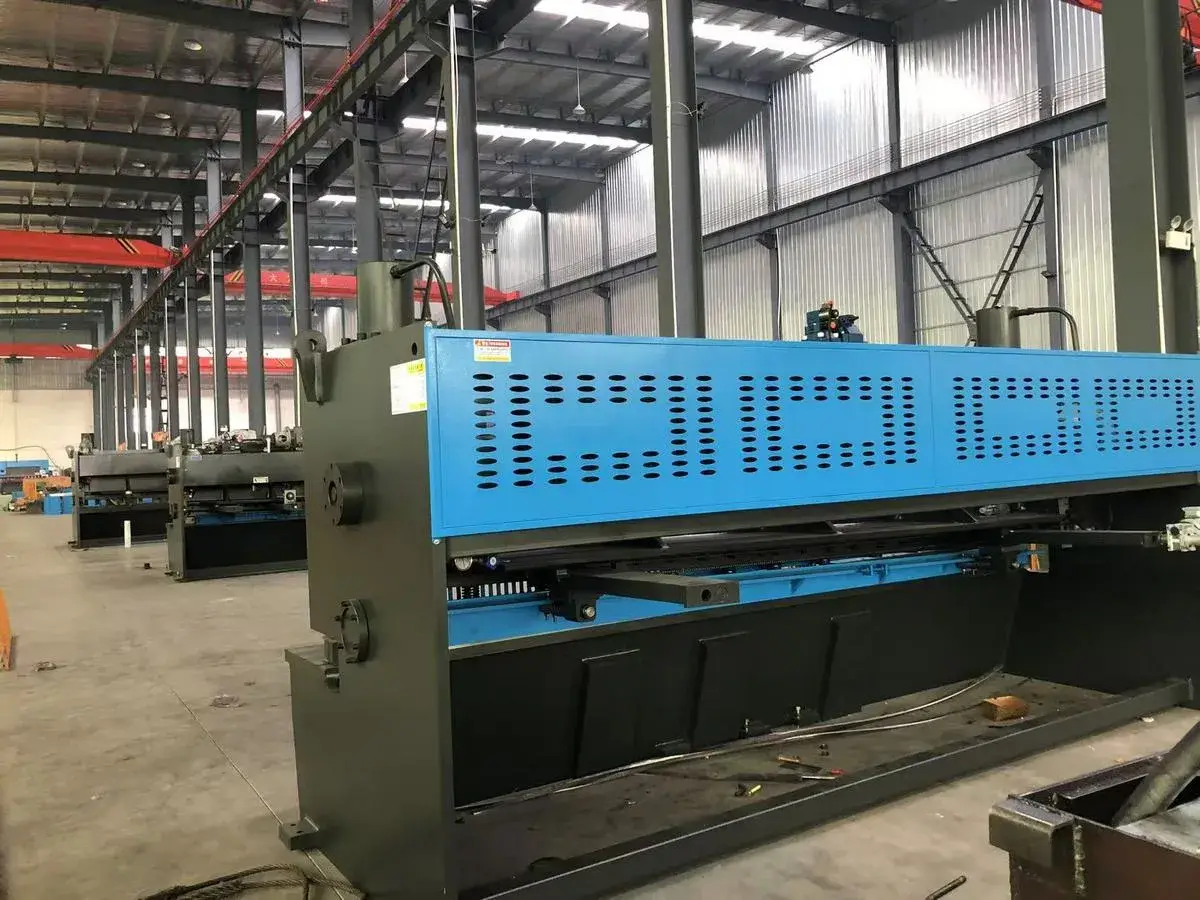

CNC Hydraulic Swing Beam Shear
A CNC hydraulic swing beam shear is designed for accurate and efficient cutting of sheet metal, offering stable performance for a wide range of fabrication needs. With a rigid structure and precise control system, it delivers consistent cutting quality while maintaining smooth operation across different material thicknesses.
Technical Specifications
| Max. Shearing Length | 3200mm |
| Max. Shearing Thickness | 8mm |
| Shearing Angle | 0.5-2.5° |
| Number of Hold-Down Cylinders | 11 |
| Stroke Rate | 8-13strokes/min |
| Throat Depth | 200 mm |
| Main Motor Power | 11Kw |
| Standard | GB14404-93 (Shearing Machine Accuracy Standard) |
| Hydraulic Gear Pump | G25NF |
| Backgauge Drive | Precision T-type Lead Screw |
| Max. Hydraulic Pressure | 20-25MPa |
| Blade Material | 6CrW2Si |
| Control System | Laimore (optional: Cybelec / DELEM / ESA) |
| Electrical Components | Schneider Electric |
Features
- The swing beam sheer adopts an all-steel welded structure with vibration stress relief treatment, ensuring high rigidity and long-term stability. Optimized through finite element analysis and computer-aided design, the structure is engineered to improve strength and reliability.
- An advanced integrated hydraulic valve block design provides a compact layout, reducing piping connections while improving system reliability and ease of maintenance.
- Tandem oil cylinders maintain a constant shearing angle during operation, ensuring consistent cutting performance.
- The accumulator return system enables fast and stable return movement, while the blade clearance can be electrically adjusted for accurate and convenient setup.
- Adjustable shearing angle helps reduce material distortion, and the electric backgauge with position display allows precise and user-friendly positioning.
- Rolling support balls reduce surface scratches on the sheet and minimize friction during material feeding.
