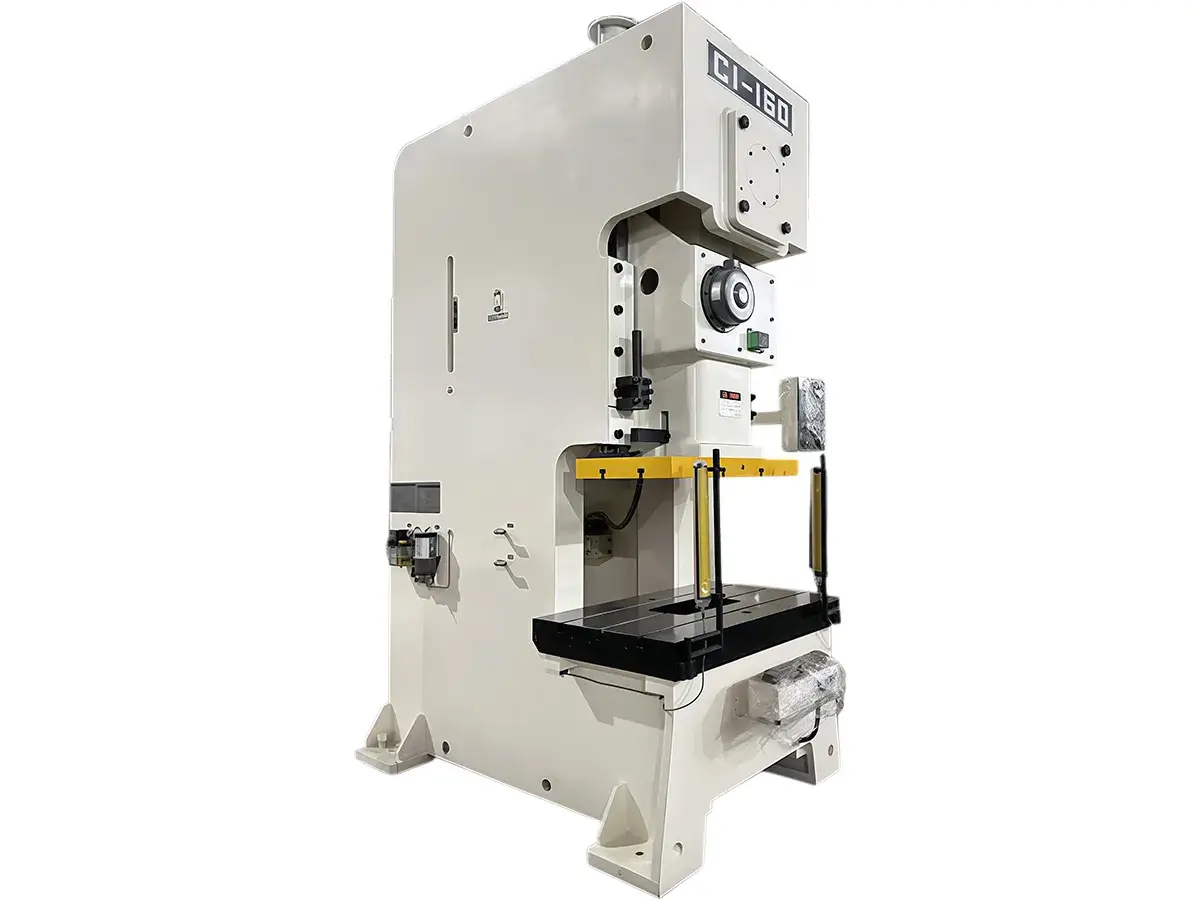

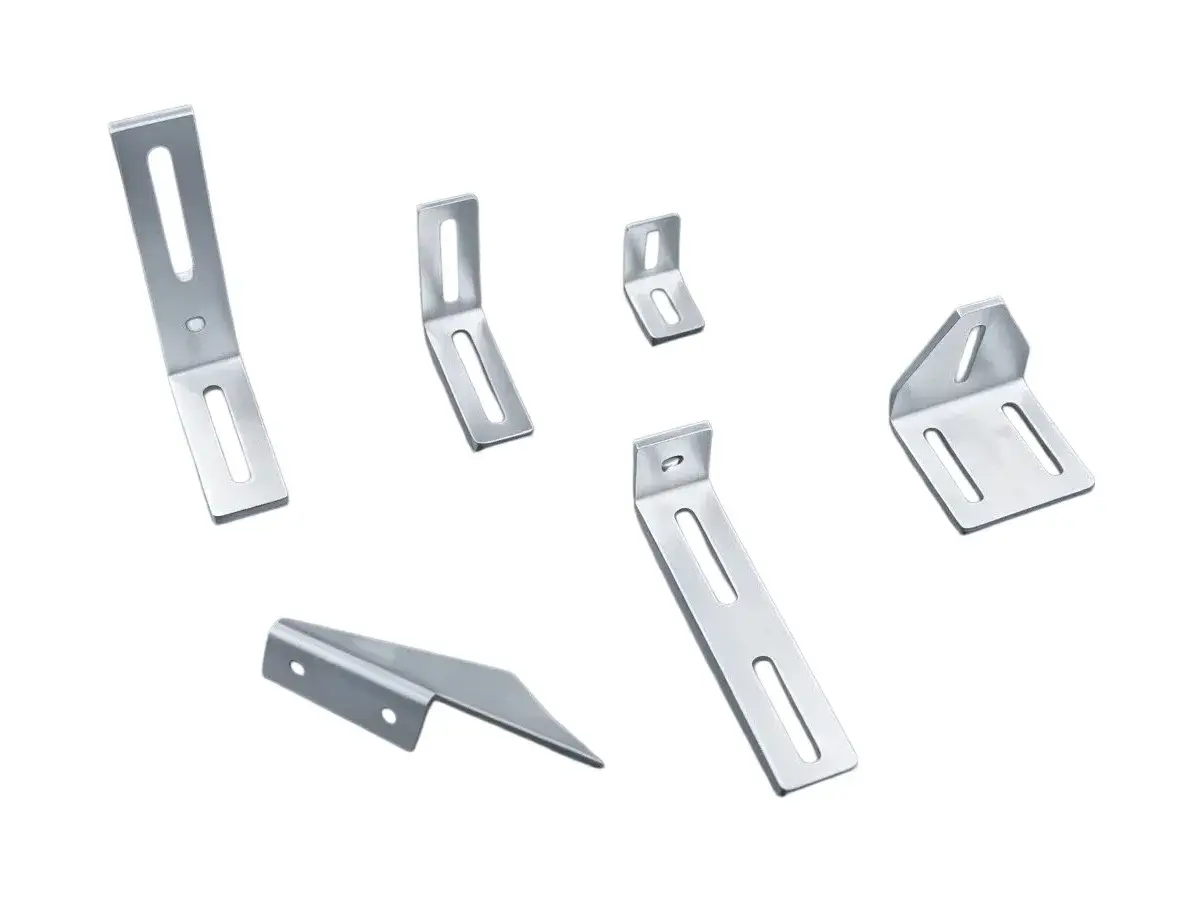

The single crank C-type stamping press machine is suitable for reliable, high-speed and efficient stamping, punching and forming processing of metal sheets. Adopting a rigid C-frame structure and a precision drive system, it has a wide operating space, and can maintain equipment durability and product accuracy consistency in mass metal processing production.

Request a Quote
Technical Specifications
Model Unit C1-25 C1-35 C1-45 C1-60 C1-80
Type - V H V H V H V H V H
Capacity Ton 25 25 35 35 45 45 60 60 80 80
Rated Tonnage Point mm 3.2 1.6 3.2 1.6 3.2 1.6 4 2 4 2
Strokes Per Minute spm 60-140 130-200 40-120 110-180 40-100 100-150 35-90 80-120 35-80 80-120
Stroke Length mm 60 30 70 40 80 50 120 60 150 70
Die Height (S.D.A.U) mm 200 215 220 235 250 265 310 340 340 380
Slide Adjustment mm 50 50 55 55 60 60 75 75 80 80
Slide Area (L.R×F.B) mm 470×220×50 520×250×50 560×300×60 700×360×70 770×420×70
Bolster Area (L.R×F.B) mm 680×300×70 800×400×70 850×440×B0 900×500×80 1000×550×90
Shank Hole mm ∅38 ∅38 ∅38 ∅50 ∅50
Main Motor kW 2.2×4 2.2×4 3.7×4 5.5×4 7.5×4
Slide Adjustment HP Manual Manual Manual Manual Manual Manual Manual Manual Electric
Air Pressure kg/cm² 5-6 5-6 5-6 5-6 5-6
Precision Standard - CNS(JIS) 1 class -
Machine Dimensions (L×W×H) mm 1390×920×2125 1450×900×2300 1650×1040×2390 1670×1090×2750 1820×1328×3005
Die Cushion Capacity Ton - 2.3 2.3 3.6 3.6
Die Cushion Stroke mm - 50 50 70 70
Die Cushion Area mm - 300×230 300×230 350×300 450×310
Features
  • Rigid Frame Construction
    The frame is welded from high-quality steel plates and treated with shot blasting and stress relief processes, ensuring stability and long-term reliability.
  • High-Precision Guiding System
    Equipped with six-face guideways, the optimized transmission structure ensures smooth operation and consistent stamping precision.
  • Reliable Safety System
    Features a dependable clutch and brake system with dual solenoid valves, along with overload protection to ensure safe operation and controlled emergency stopping.
  • Automatic Lubrication System
    An automatic grease lubrication system maintains proper operation of the press and reduces wear on key components.
