Double Crank C-Frame Press, C2 Series

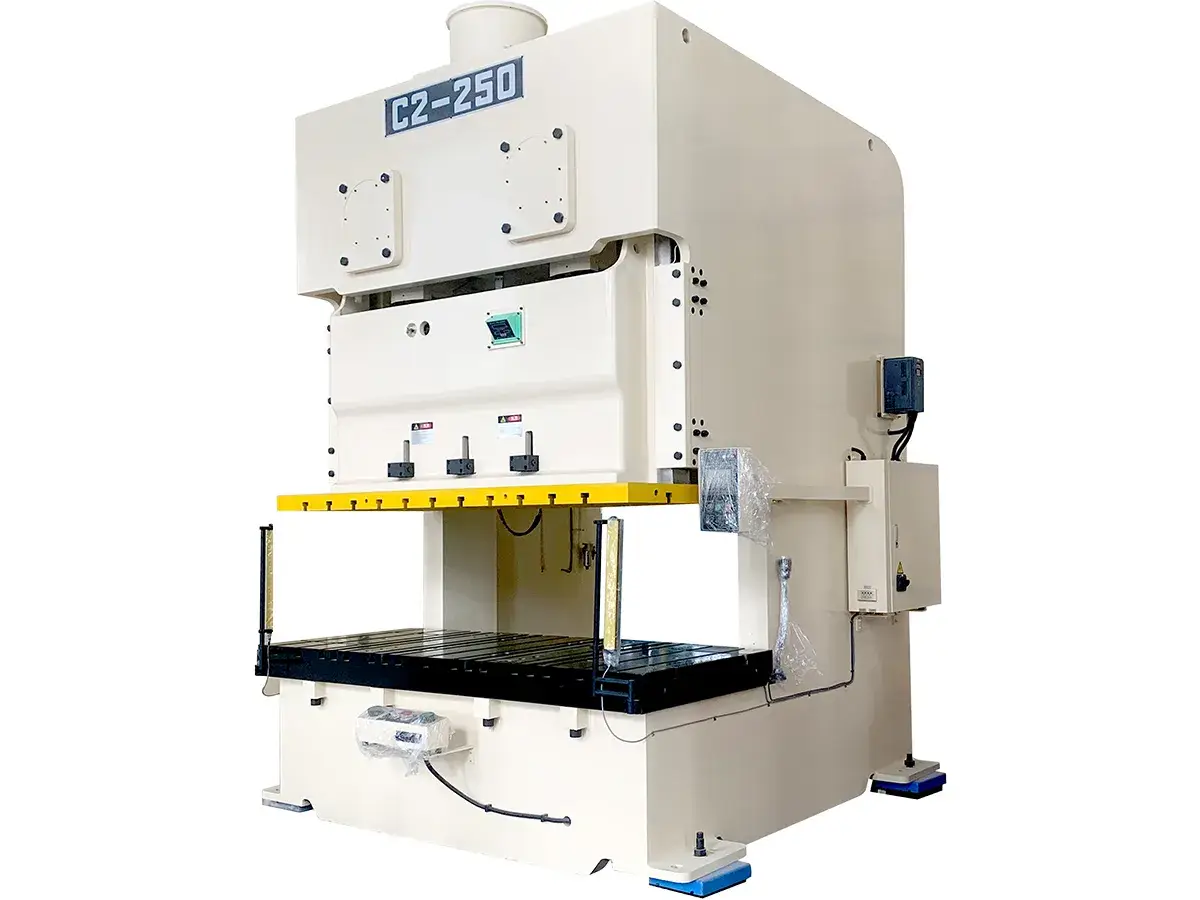

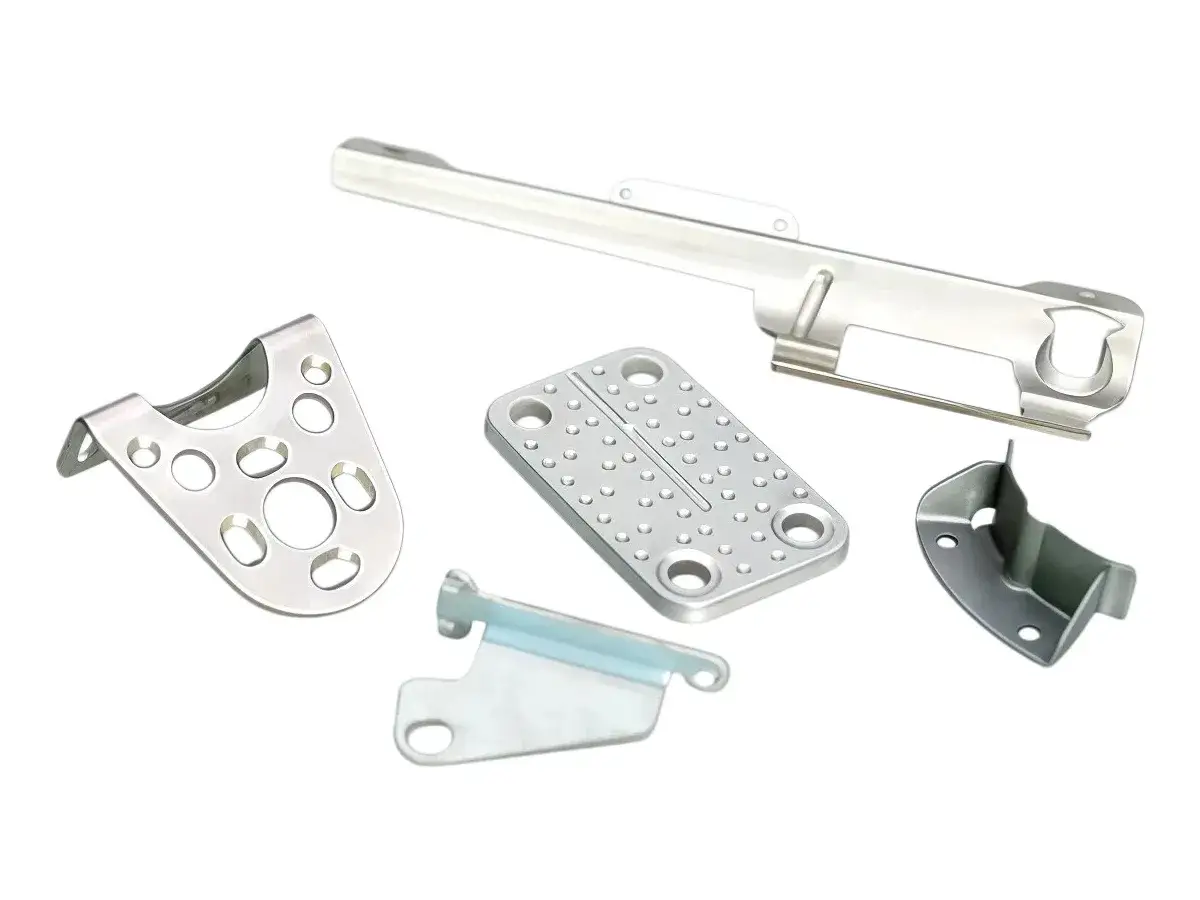

The double crank C-type stamping press machine is designed for stable and efficient stamping processing of large metal sheet parts, especially suitable for processing scenarios that require higher loads and balanced force distribution. Its dual-drive structure and wide working area help maintain consistent results while supporting higher productivity in high-speed production across the automotive, appliance, and general metalworking industries.

Request a Quote
Technical Specifications
Model Unit C2-110 C2-160 C2-200 C2-250 C2-315
Type V H V H V H V H V H
Capacity Ton 110 110 160 160 200 200 250 250 315 315
Rated Tonnage Point mm 5 3 6 3 6 3 7 3.5 7 3.5
Strokes Per Minute spm 180 110 200 130 250 150 280 170 280 170
Stroke Length mm 35-65 50-100 30-55 40-85 25-45 35-70 20-35 30-60 20-35 30-50
Die Height (S.D.A.U) mm 400 435 450 485 500 550 550 605 550 605
Slide Adjustment mm 100 100 100 100 120 120 120 120 120 120
Slide Area (L.R×F.B) mm 1400×500×70 1600×550×70 1850×650×95 2100×700×95 2300×750×95
Bolster Area (L.R×F.B) mm 1800×650×130 2000×760×150 2400×840×170 2700×900×170 2800×950×170
Main Motor kW 11×4 11×4 15×4 15×4 18.5×4 18.5×4 22×4 22×4 30×4 30×4
Air Pressure kg/cm² 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6
Precision Standard - CNS(JIS) 1 class CNS(JIS) 1 class CNS(JIS) 1 class CNS(JIS) 1 class CNS(JIS) 1 class
Die Cushion Type mm Two-Plate & Twin-Cylinder Two-Plate & Twin-Cylinder Two-Plate & Twin-Cylinder Two-Plate & Twin-Cylinder Two-Plate & Twin-Cylinder
Die Cushion Capacity Ton 3.6×2 3.6×2 6.3×2 6.3×2 10×2 10×2 14×2 14×2 14×2 14×2
Die Cushion Stroke mm 70 70 70 70 80 80 100 100 100 100
Die Cushion Area mm 350×235×2sets 410×260×2sets 540×350×2sets 640×470×2sets 640×470×2sets
Features
  • Rigid Frame Construction with High Load Capacity
    The frame is welded from high-quality steel plates and treated with shot blasting and stress relief processes, ensuring stable accuracy and the ability to withstand higher eccentric loads.
  • Large Worktable for Wide Applications
    The extended bed size accommodates large sheet metal parts and is well suited for progressive die operations and automated production, improving overall efficiency.
  • Flexible Integration with Automation Systems
    The press is designed to work seamlessly with various automation equipment, supporting efficient and scalable production setups.
  • Comprehensive Safety Protection System
    Equipped with complete operator protection features, the machine complies with standard safety requirements for stamping presses.
