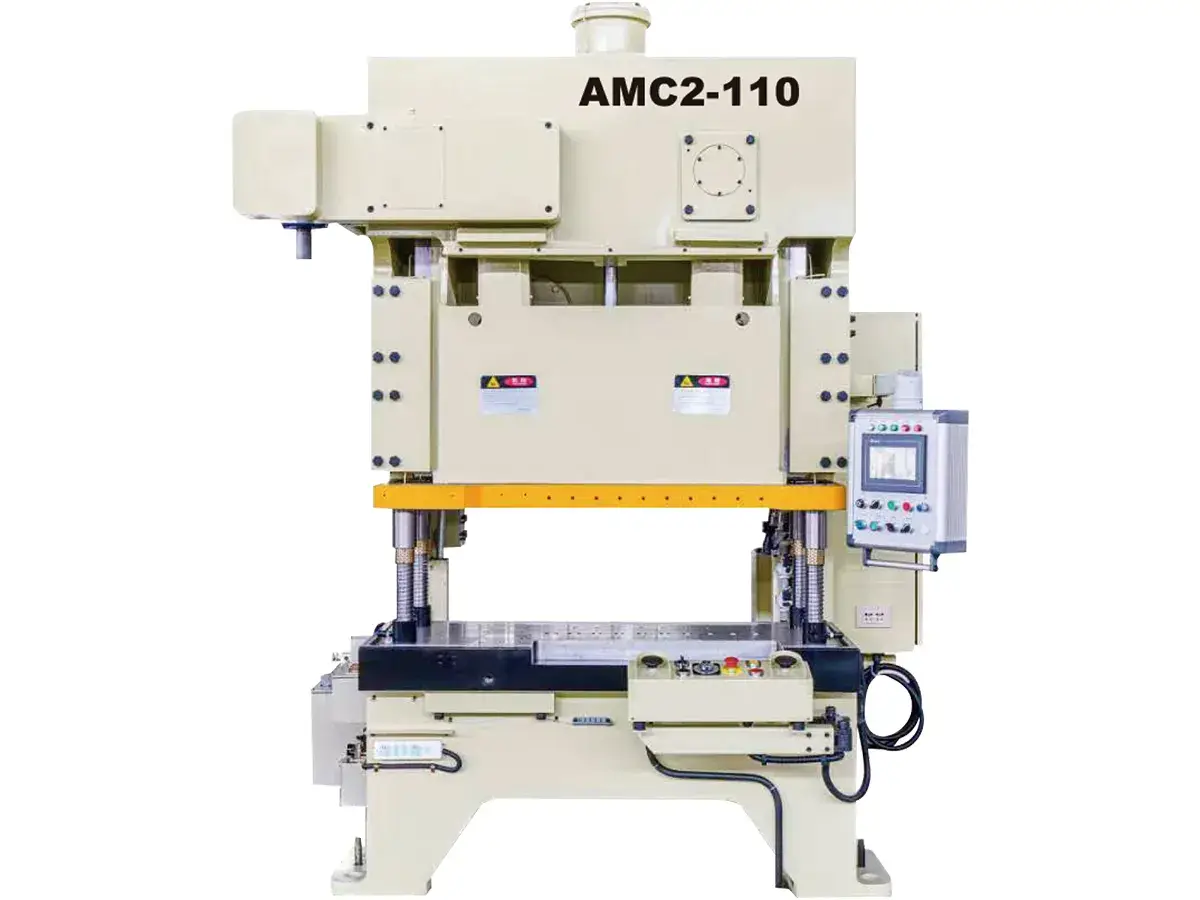

4-Post Press for Battery Steel Shell, AMC2 Series

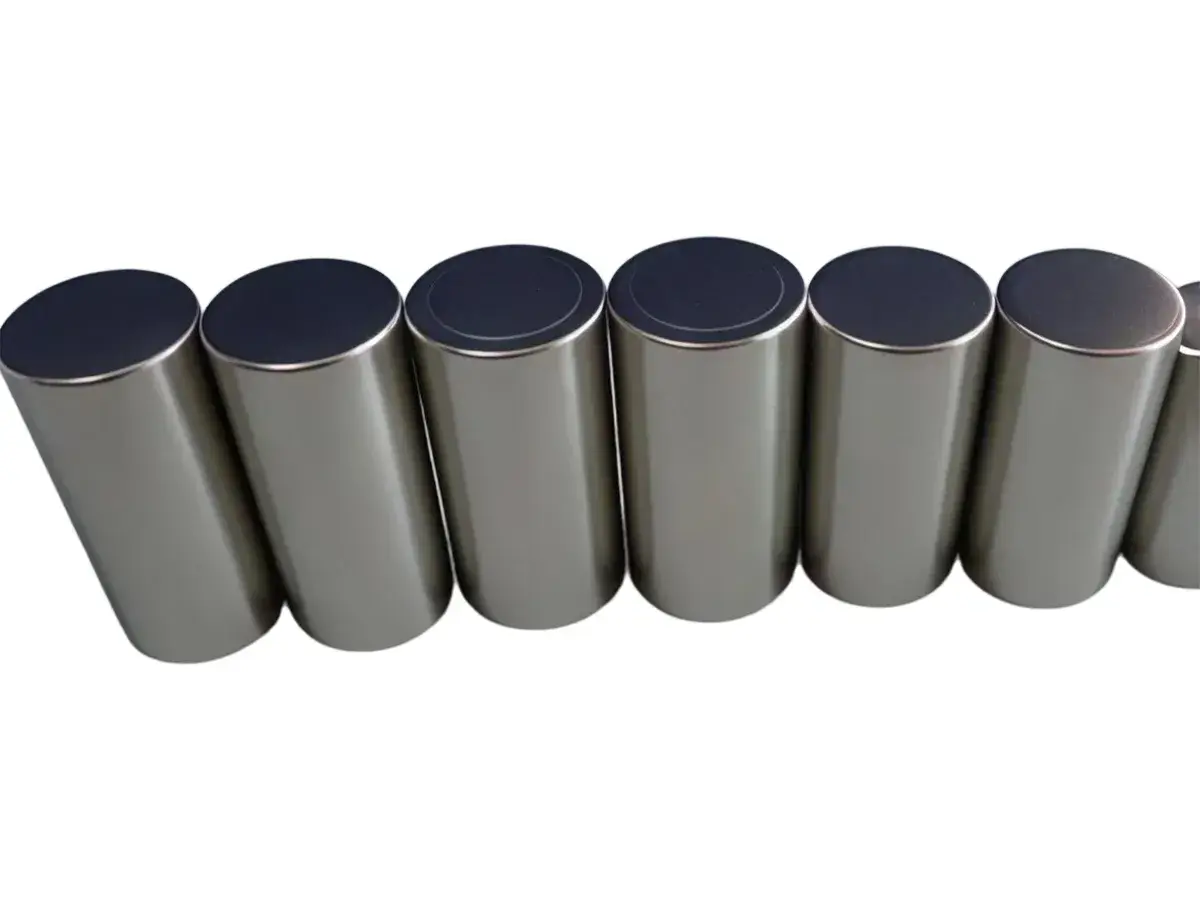

A 4-post press is used for forming battery steel shells where alignment and forming stability are especially important. The AMC2 Series is designed to keep the process steady during deep drawing, helping maintain consistent shape and surface quality. It is well suited for battery shell production where consistent results and stable forming conditions are required throughout the process.

Request a Quote
Technical Specifications
Model Unit AMC2-60 AMC2-80 AMC2-110
Capacity ton 60 80 110
Rated Tonnage Point mm 3.0 3.5 5.0
Stroke Length mm 140 190 190
Max. Die Height mm 260 320 320
Strokes Per Minute spm 50-100 60-80 30-50
Slide Area (L.R×F.B) mm 1460×480×70 1460×480×70 1760×500×70
Bolster Area (L.R×F.B) mm 1500×480×130 1500×480×130 1800×600×130
Max. Upper Die Weight kg 300 300 700
Main Motor Power kW 7.5 11 15
Features
  • Extended Six-Face Guiding System
    The long guide structure improves resistance to off-center loads, helping maintain stable and precise ram movement during forming.
  • Circulating Oil Lubrication with Oil Collection System
    The lubrication system uses circulating oil, with a standard oil collection tray to keep the machine area clean and organized.
  • Integrated Forming Support Components
    Equipped with guide columns, guide bushings, a lubrication pump, and a dedicated drawing oil pump to support stable forming during battery shell production.
